Step 3: J2-J3 Sub-Assembly

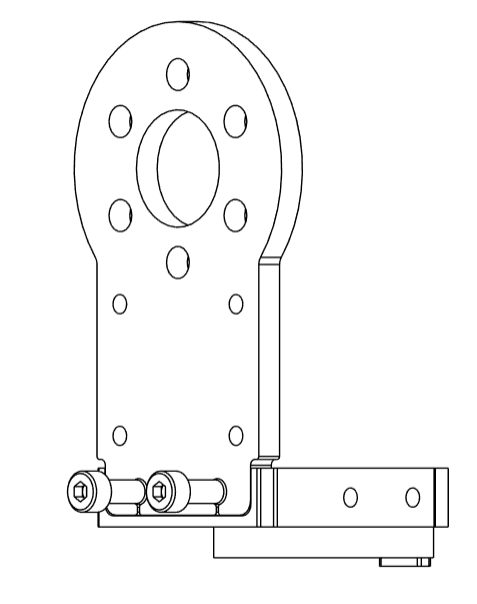

  1. Attach J2_A to J2_B using 2 M4x10 bolts
step1

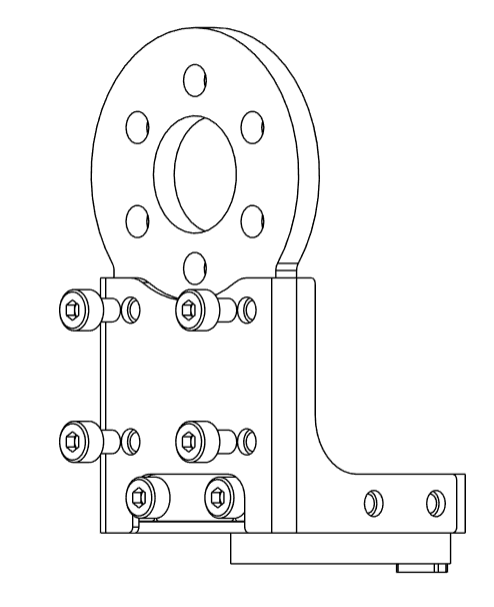

  1. Carefully place J2_C over J2_A and J2_B such that the holes align. Attach J2_C to J2_A using 4 M4x6 bolts
step2

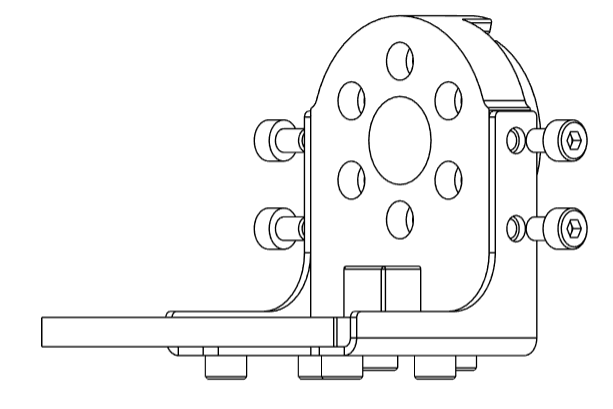

  1. Attach J2_C to J2_B using 4 M4x6 bolts
step3
info

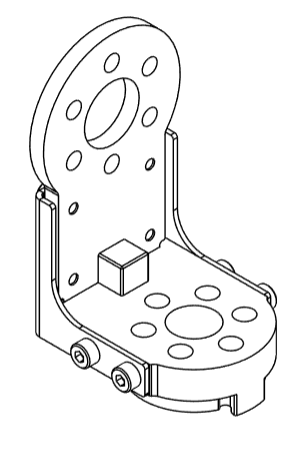

That concludes the J2-J3 Sub-Assembly
