Arm (Manufacturing)
info
The estimated total cost of manufactured components is ￥316,018
Here is the list of the components that need to be manufactured:
| Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Manufacturing Method | Material | Manufacturer |
|---|---|---|---|---|---|---|---|---|

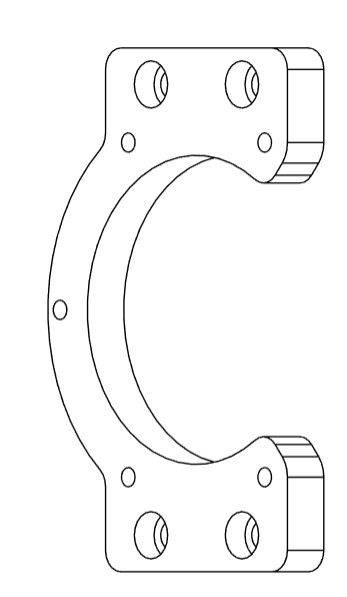

| J1_A |  | MVBLK-ASN-48S-4BGUX-L | 2 | ￥7,222 | ￥14,444 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

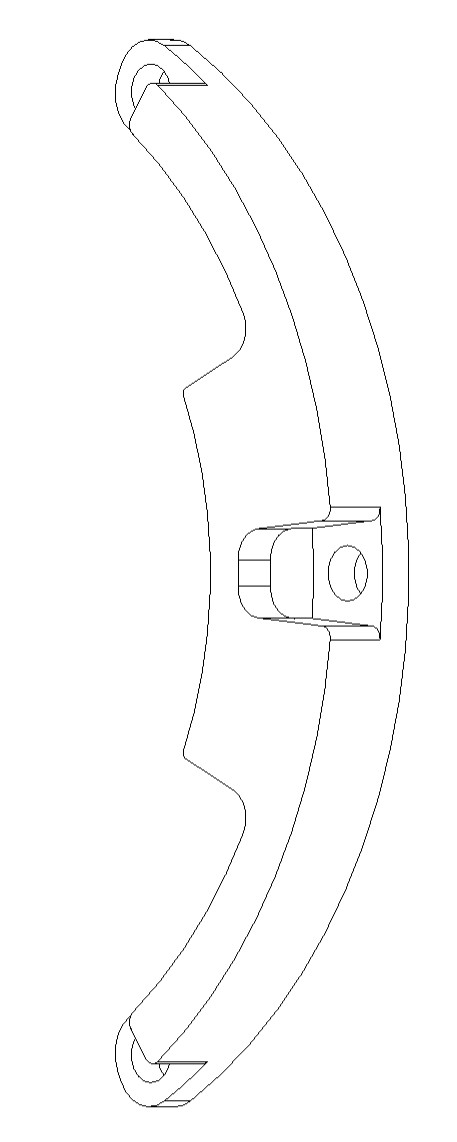

| J1_B |  | MVBLK-ASN-48S-HMK8D-L | 2 | ￥6,484 | ￥12,968 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

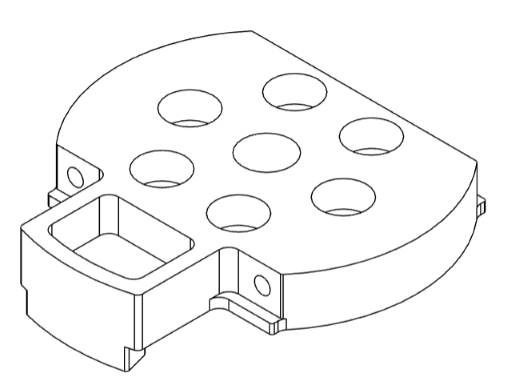

| J1_C |  | MVBLK-ASN-48S-EF9C9-L | 2 | ￥14,243 | ￥28,486 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

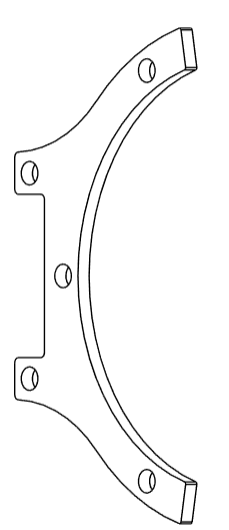

| J1_D |  | MVSHM-3N03040-48P-1STE8-L | 2 | ￥1,690 | ￥3,380 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

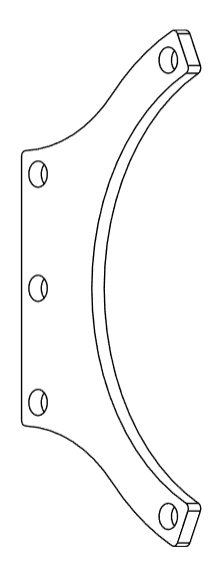

| J1_E |  | MVSHM-3N03040-48P-42E2H-L | 2 | ￥1,590 | ￥3,180 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

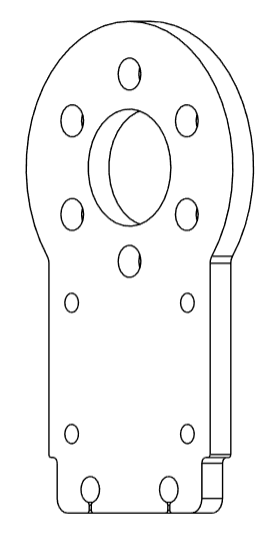

| J2_A |  | MVSHM-3N05042-48P-E2REY-L | 2 | ￥2,401 | ￥4,802 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

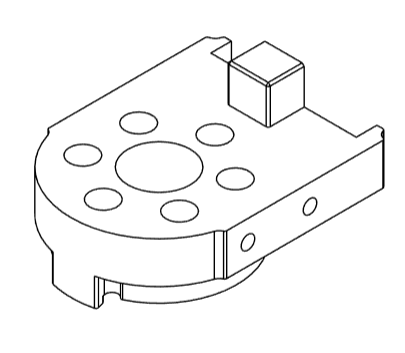

| J2_B |  | MVBLK-ASN-48S-6UB8Y-L | 2 | ￥11,240 | ￥22,480 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

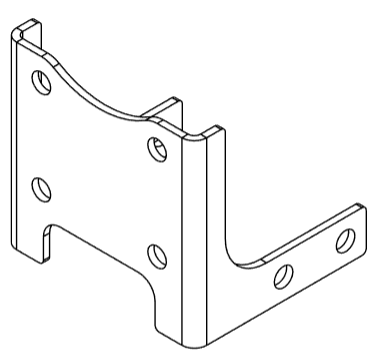

| J2_C |  | MVSHM-3N01548-48P-P2GEJ-L | 2 | ￥1,756 | ￥3,512 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

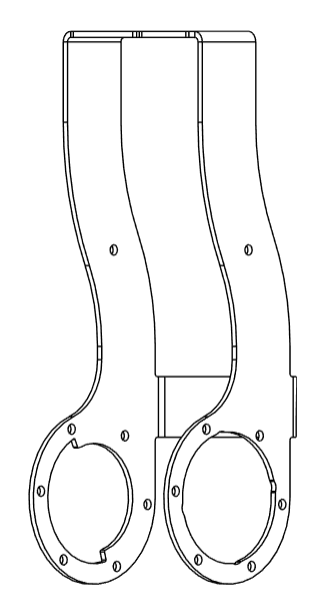

| J4_A |  | MVSHM-3N02048-48P-EH8AF-L | 2 | ￥3,235 | ￥6,470 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

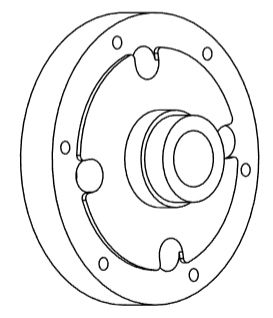

| J4_B |  | MVTUP-ASN-48P-DMN5U-L | 2 | ￥5,916 | ￥11,832 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

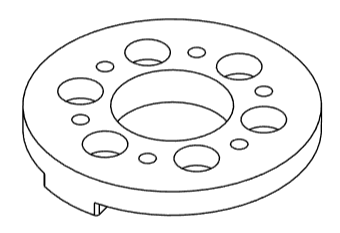

| J4_C |  | MVTUP-ASN-48P-XK7HZ-L | 2 | ￥5,414 | ￥10,828 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

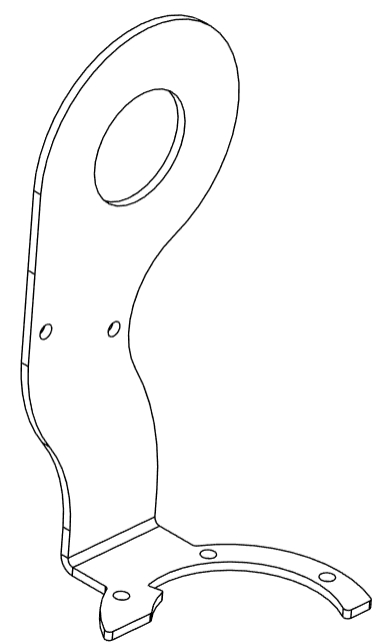

| J4_D |  | MVSHM-3N02048-48P-WH1FY-L | 2 | ￥1,868 | ￥3,736 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

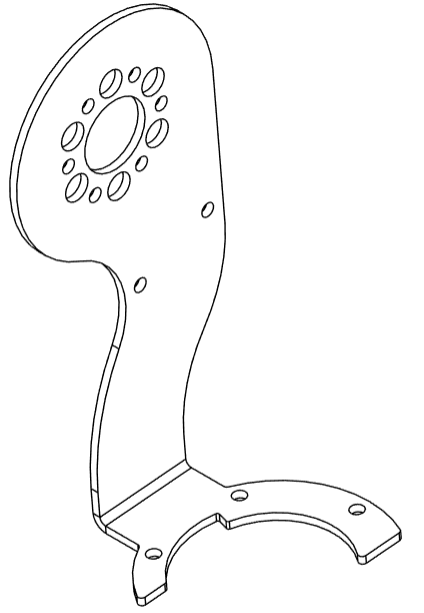

| J4_E |  | MVSHM-3N02048-48P-S94SN-L | 2 | ￥2,157 | ￥4,314 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

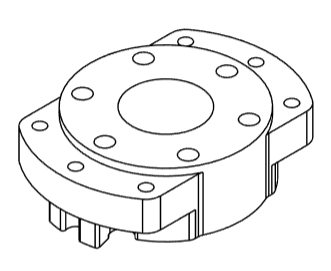

| J5_A |  | MVTUP-ASN-48P-5C724-L | 2 | ￥11,381 | ￥22,762 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

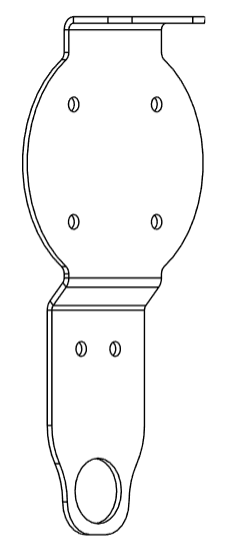

| J6_A |  | MVSHM-3N01548-48P-LUEKH-L | 2 | ￥1,834 | ￥3,668 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

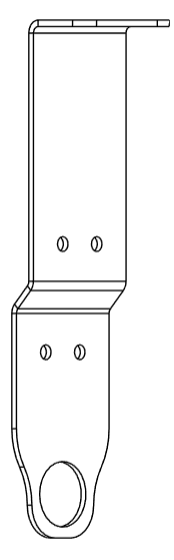

| J6_B |  | MVSHM-3N01548-48P-2G9M4-L | 2 | ￥1,745 | ￥3,490 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

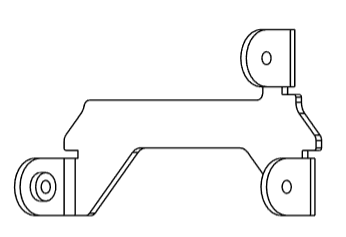

| J6_C_left |  | MVSHM-3N0154A-48P-GWWD7-L | 1 | ￥1,901 | ￥1,901 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |
| J6_C_right |  | MVSHM-3N0154A-48P-H6RYM-L | 1 | ￥1,901 | ￥1,901 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

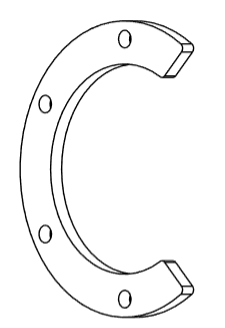

| J6_D |  | MVSHM-3N03040-48P-7127C-L | 2 | ￥1,556 | ￥3,112 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |

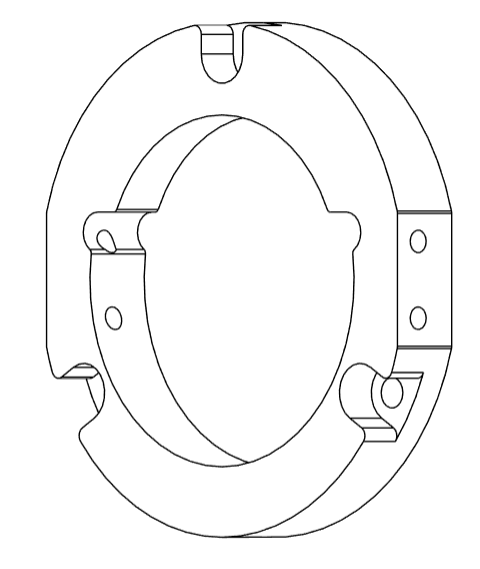

| J7_A |  | MVTUP-ASN-48P-XU5X7-L | 2 | ￥16,643 | ￥33,286 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |
| J7_B |  | MVBLK-ASN-48S-G98W9-L | 4 | ￥6,724 | ￥26,896 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

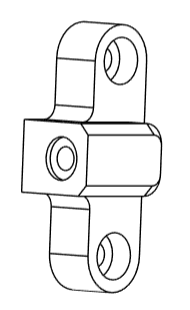

| J7_C |  | MVBLK-ASN-48S-HHRAL-L | 2 | ￥5,674 | ￥11,348 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

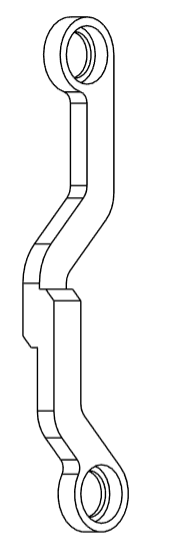

| J7_D_left |  | MVBLK-SUB-48P-DXLUA-L | 1 | ￥9,698 | ￥9,698 | Metal Cutting (CNC) | SUS304 | MiSUMi MEVIY |

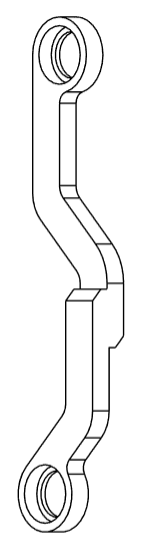

| J7_D_right |  | MVBLK-SUB-48P-C2CHA-L | 1 | ￥9,698 | ￥9,698 | Metal Cutting (CNC) | SUS304 | MiSUMi MEVIY |

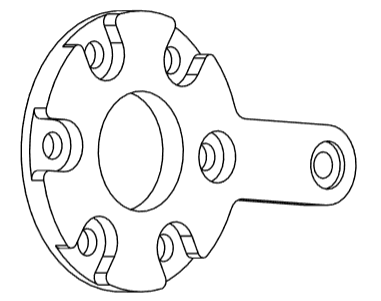

| J7_E |  | MVBLK-SUB-48S-U94SX-L | 2 | ￥9,131 | ￥18,262 | Metal Cutting (CNC) | SUS304 | MiSUMi MEVIY |

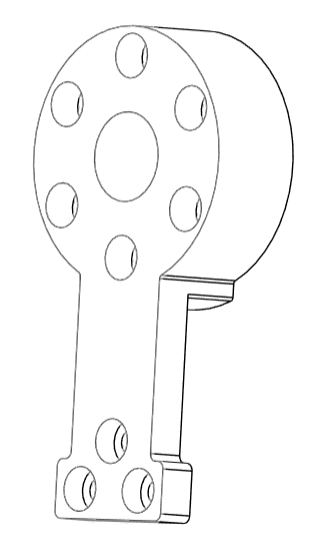

| J8_A |  | MVBLK-ASN-48S-JAPTK-L | 2 | ￥7,141 | ￥14,282 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

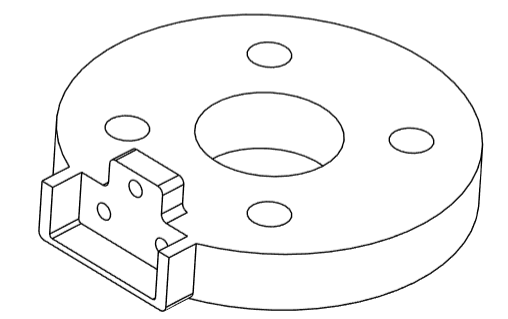

| J8_B |  | MVBLK-ASN-48S-MUFLR-L | 2 | ￥12,641 | ￥25,282 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |
