Arm (Off-The-Shelf)
info
The estimated total cost of off-the-shelf components is ￥34,336
Here is the list of the components that can be purchased off-the-shelf:
| Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Supplier |
|---|---|---|---|---|---|---|

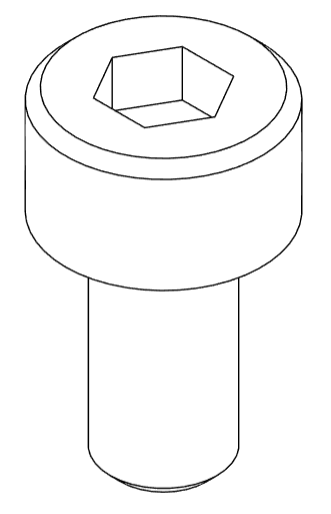

| M3x6 bolt |  | CBE3-6 | 146 | ￥44 | ￥6,424 | MiSUMi |

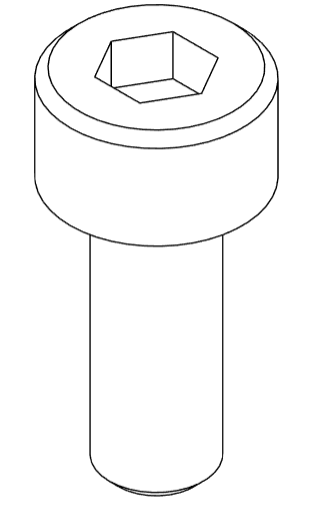

| M3x8 bolt |  | CBE3-8 | 38 | ￥56 | ￥2,128 | MiSUMi |

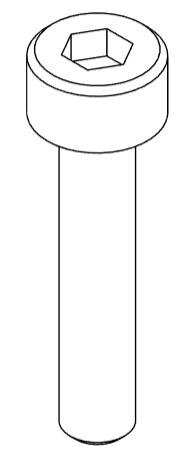

| M3x15 bolt |  | CBE3-15 | 24 | ￥52 | ￥1,248 | MiSUMi |

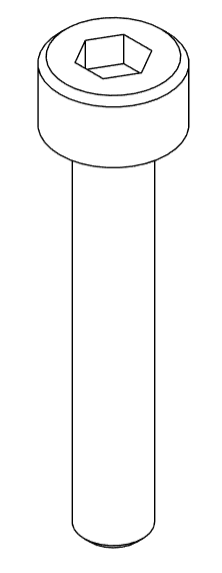

| M3x18 bolt |  | CBE3-18 | 12 | ￥54 | ￥648 | MiSUMi |

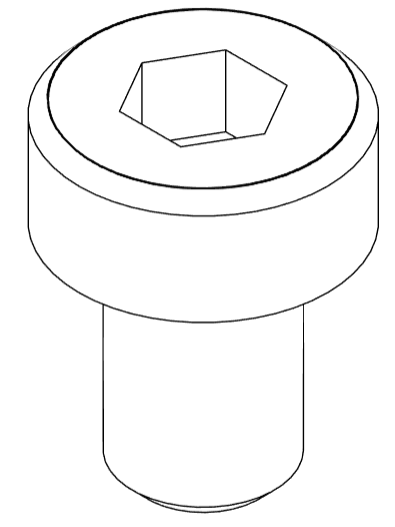

| M4x6 bolt |  | CBE4-6 | 16 | ￥54 | ￥864 | MiSUMi |

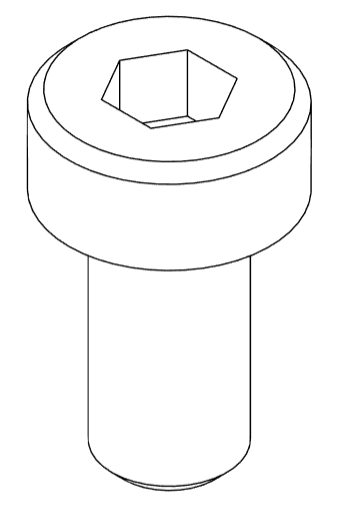

| M4x8 bolt |  | CBE4-8 | 16 | ￥61 | ￥976 | MiSUMi |

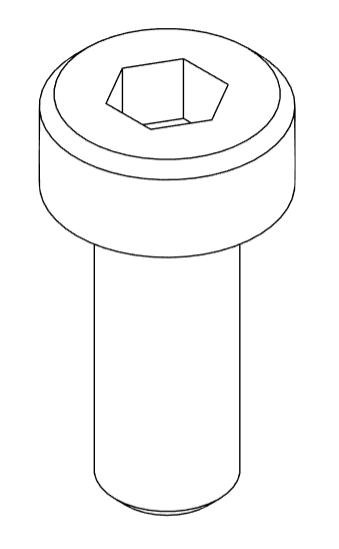

| M4x10 bolt |  | CBE4-10 | 24 | ￥59 | ￥1,416 | MiSUMi |

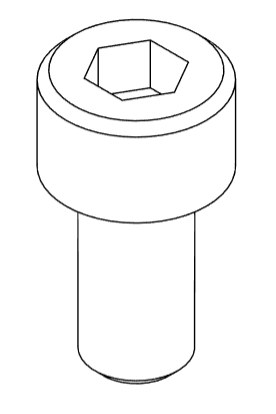

| M5x10 bolt |  | CBE5-10 | 24 | ￥59 | ￥1,416 | MiSUMi |
| Circular Post - Threaded on Both Ends |  | AETTS8-61-SC0-M3-N3 | 2 | ￥1,120 | ￥2,240 | MiSUMi |
| Circular Post - Threaded on Both Ends |  | AETTS8-74.2-SC0-M3-N3 | 4 | ￥1,120 | ￥4,480 | MiSUMi |

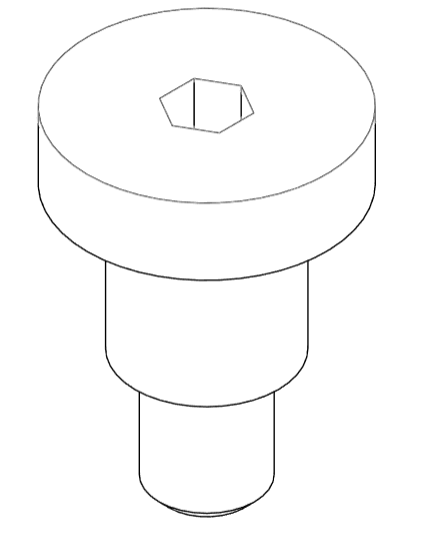

| Step Bolt |  | DBSY4-6-5 | 4 | ￥425 | ￥1,700 | MiSUMi |

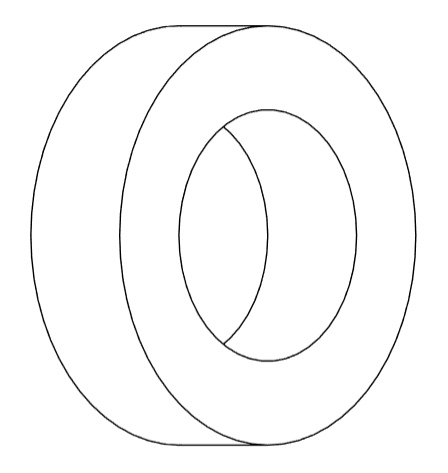

| Single-row deep groove ball bearing |  | MR106ZZ1 | 4 | ￥344 | ￥1,376 | MiSUMi |

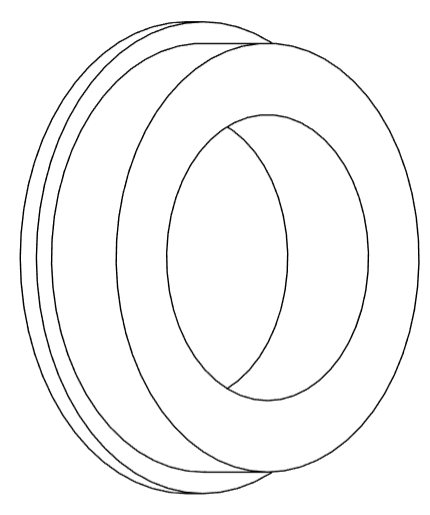

| Ball bearing, flanged, double shielded |  | FL6700ZZ | 4 | ￥880 | ￥3,520 | MiSUMi |

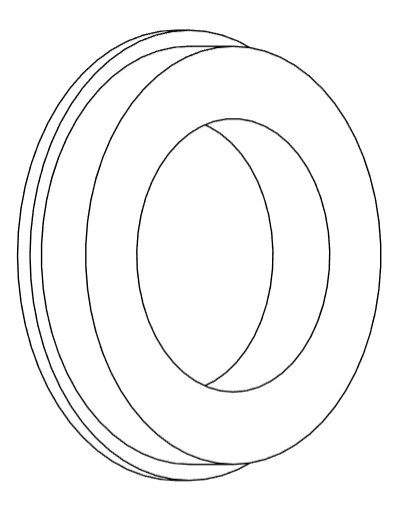

| Ball bearing, flanged, double shielded |  | FL6803ZZ | 2 | ￥1,950 | ￥3,900 | MiSUMi |

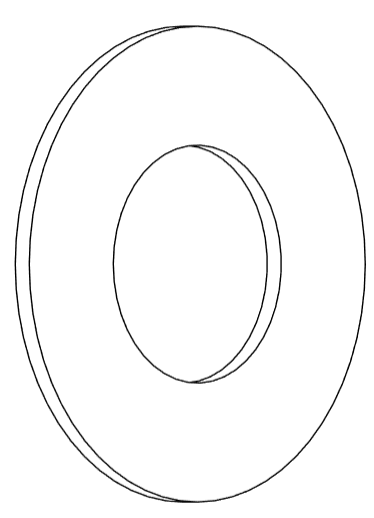

| Ultra-thin resin washer |  | SWSPS12-6-0.5 | 8 | ￥250 | ￥2,000 | MiSUMi |
