Gripper
Off-the-shelf Components
info
The estimated total cost of off-the-shelf components is ¥46,232
Here is the list of the components that can be purchased off-the-shelf:
Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Supplier |
---|---|---|---|---|---|---|
Miniature Linear Guide Standard Block | RSE2B10-155 | 2 | ¥14,940 | ¥29,880 | MiSUMi | |
M3x5 bolt | CBE3-5 | 8 | ¥70 | ¥560 | MiSUMi | |

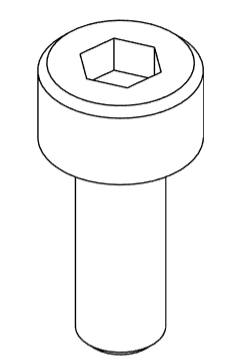

M3x8 bolt | ![]() | CBE3-8 | 20 | ¥56 | ¥1,120 | MiSUMi |

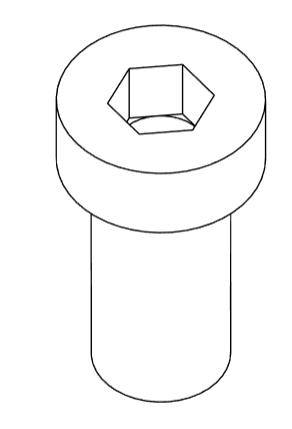

Small Diameter Head bolts M3x6 | ![]() | KBBS3-6 | 32 | ¥228 | ¥7,296 | MiSUMi |
Step Bolt | ![]() | DBSY4-5-4 | 8 | ¥440 | ¥3,520 | MiSUMi |
Bearing | ![]() | MR126ZZ | 8 | ¥482 | ¥3,856 | MiSUMi |
Manufactured Components
info
The estimated total cost of manufactured components is ¥61,710
Here is the list of the components that need to be manufactured:
Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Manufacturing Method | Material | Manufacturer |
---|---|---|---|---|---|---|---|---|

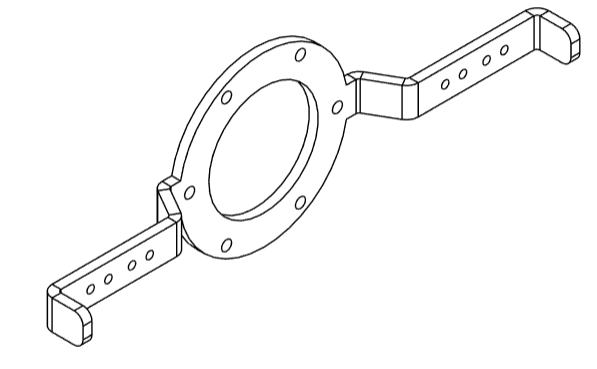

rail_connector | ![]() | MVSHM-3N0304G-48P-EMKJ7-L | 2 | ¥2,969 | ¥5,938 | Sheet Metal Fabrication | SUS304 | MiSUMi MEVIY |
swivel_rotor | ![]() | MVBLK-ASN-48P-BTTYZ-L | 2 | ¥8,194 | ¥16,388 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

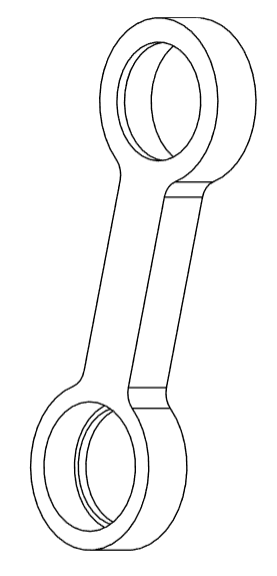

swivel_link | ![]() | MVBLK-ASN-48S-EXNRH-L | 4 | ¥5,246 | ¥20,984 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |

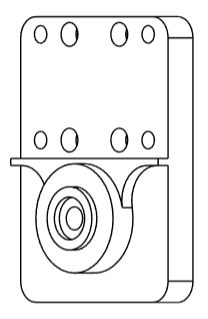

rail_CNC_attachment | ![]() | MVBLK-ASN-48S-DR8RC-L | 4 | ¥4,600 | ¥18,400 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |
