Electronics
info
The estimated total cost of electrical components is ￥84,564
Here is the list of the components that are required for the electrical connections:
| Name | Photo | Resource | Quantity | Unit Price (JPY) | Total Price (JPY) | Supplier |
|---|---|---|---|---|---|---|

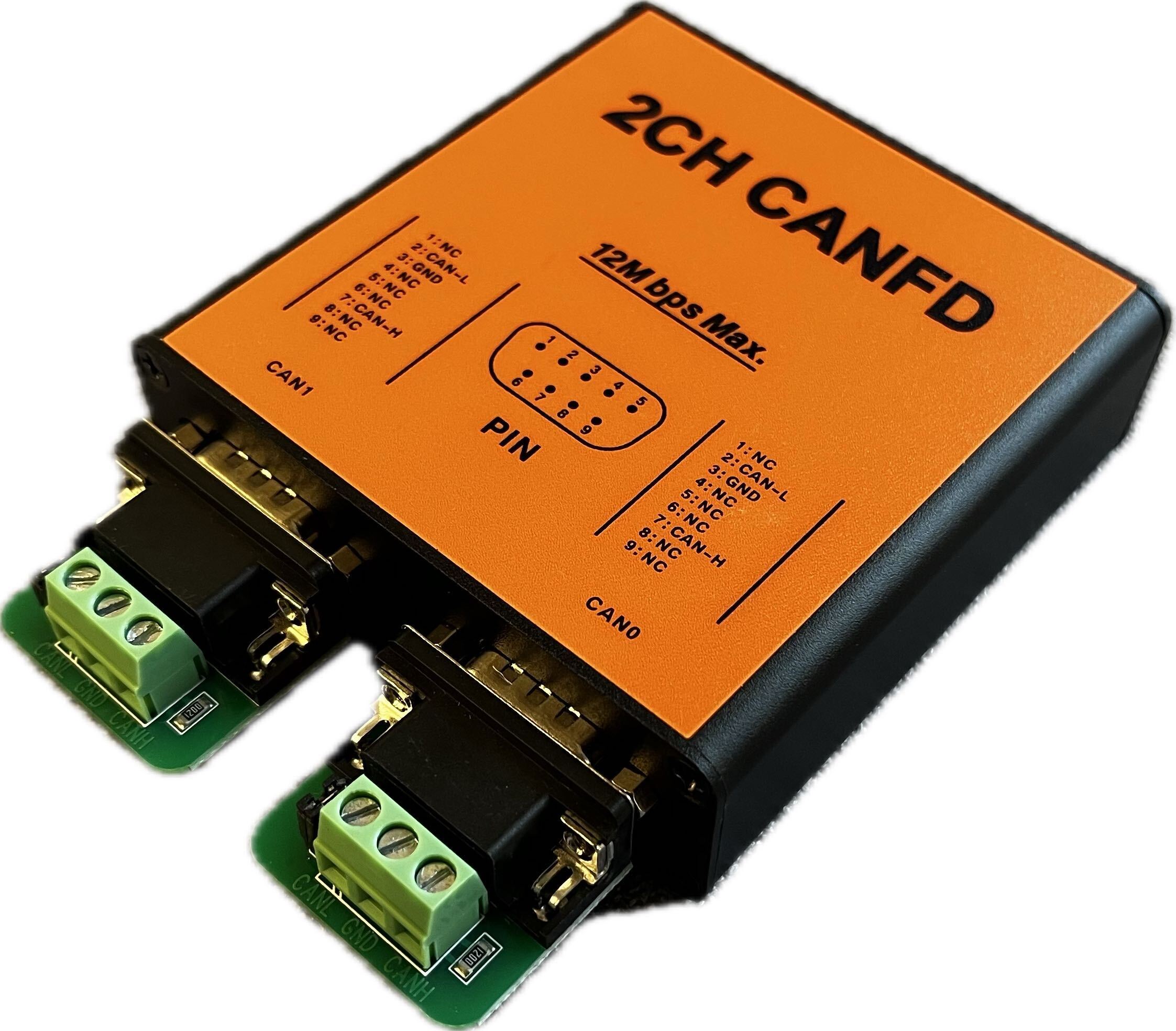

| USB2CANFD converter |  | USB to CANFD Converter Purchase Link | 2 | ￥20,680 | ￥41,360 | Pibiger |

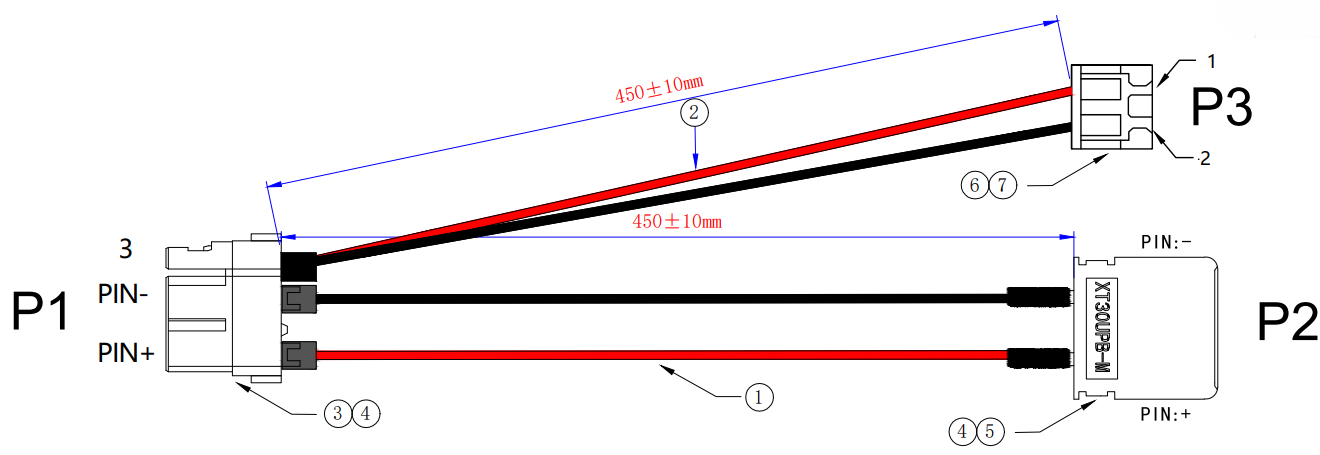

| J1/J2 to Hub Cable |  | J1&J2 to Hub Cable Drawing | 4 | ￥384 | ￥1,536 | LCSC |

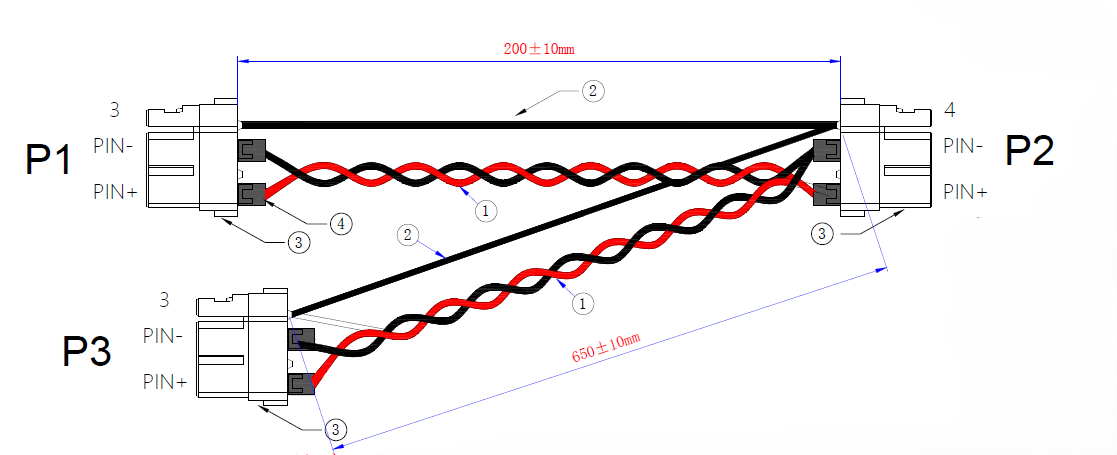

| J3+J4 to Hub Cable |  | J3+J4 to Hub Cable Drawing | 2 | ￥806 | ￥1,612 | LCSC |

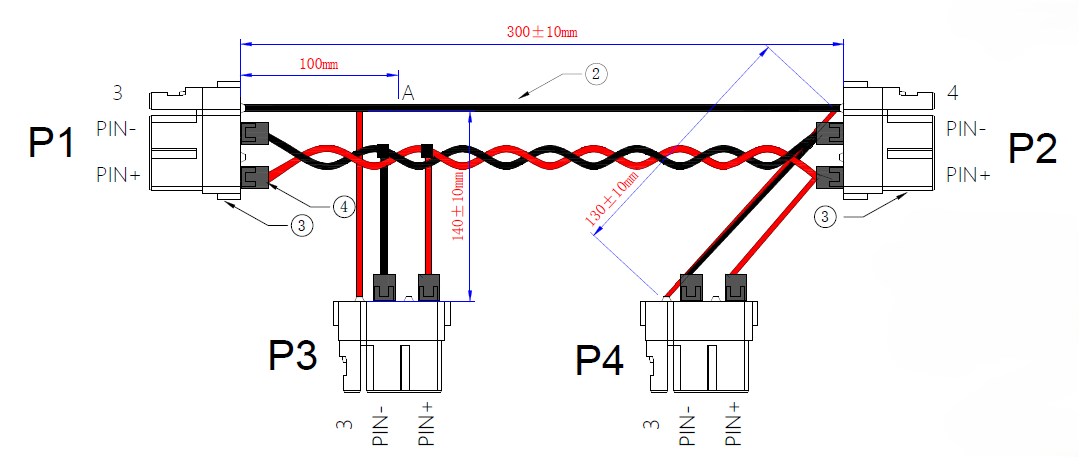

| J4+J5+J6+J7 to Hub Cable |  | J4+J5+J6+J7 to Hub Cable Drawing | 2 | ￥1,515 | ￥3,030 | LCSC |
| J7 to J8 Cable |  | J7 to J8 Cable Drawing | 2 | ￥256 | ￥512 | LCSC |

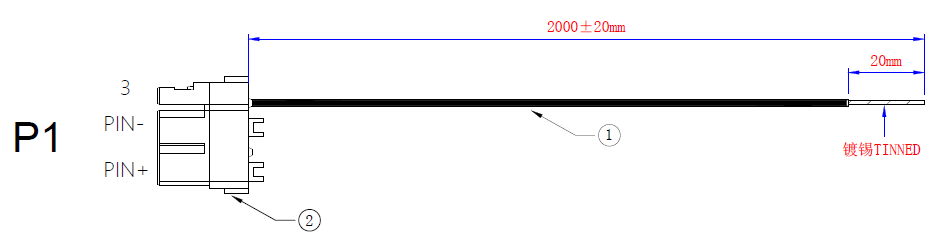

| Communication Cable |  | Communication Cable Drawing | 2 | ￥197 | ￥394 | LCSC |

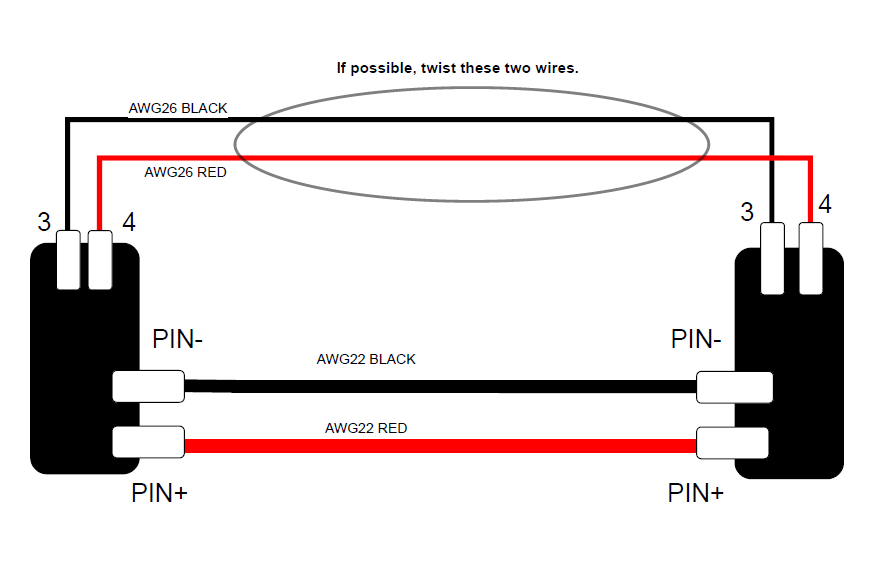

| Extension Cable |  | Extension Cable Drawing | 2 | ￥197 | ￥394 | LCSC |
| Power Supply |  | Power Supply Purchase Link | 2 | ￥14,634 | ￥29,268 | AliExpress |

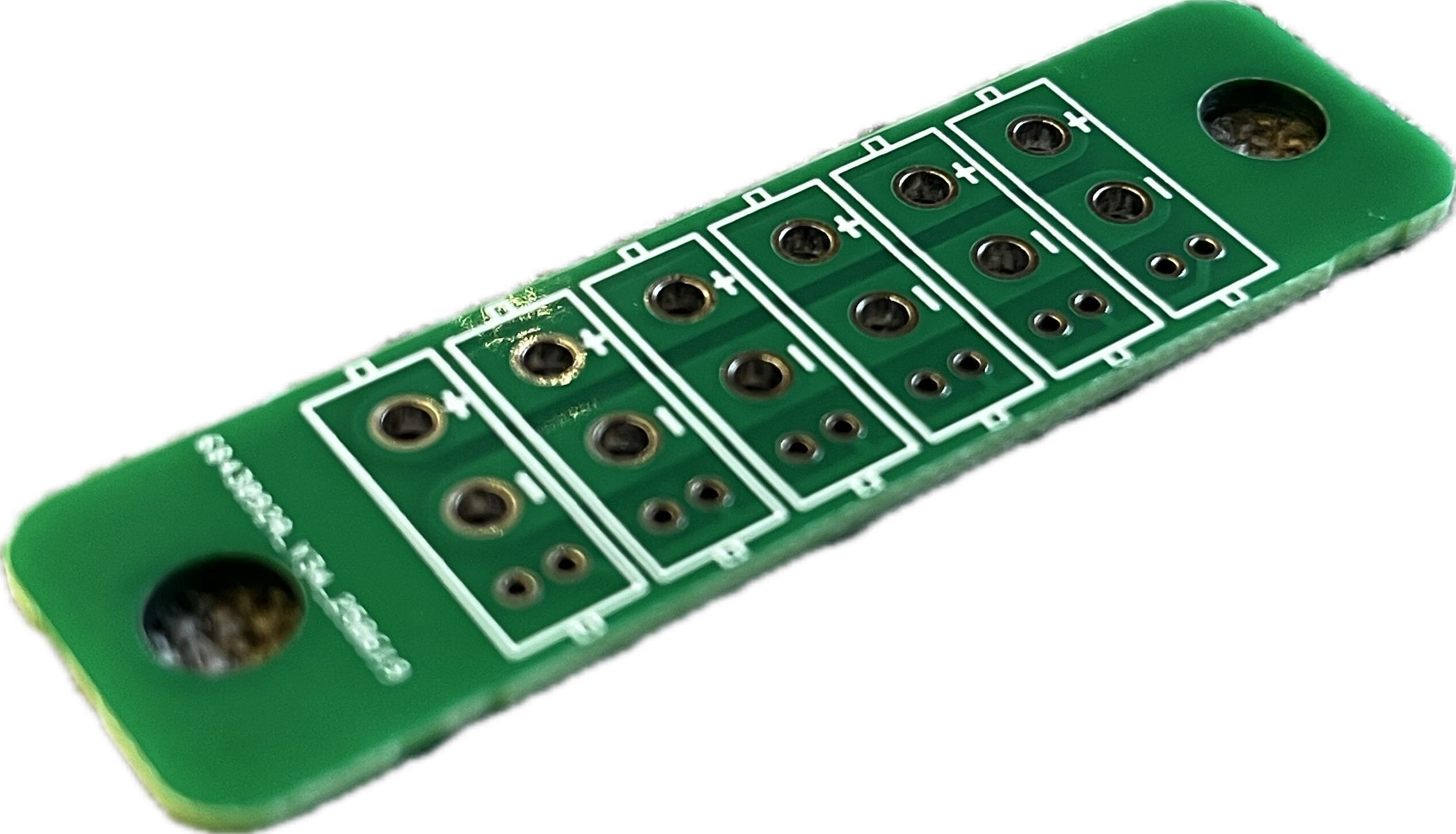

| PCB |  | 2 | ￥520 | ￥1,040 | JLCPCB | |

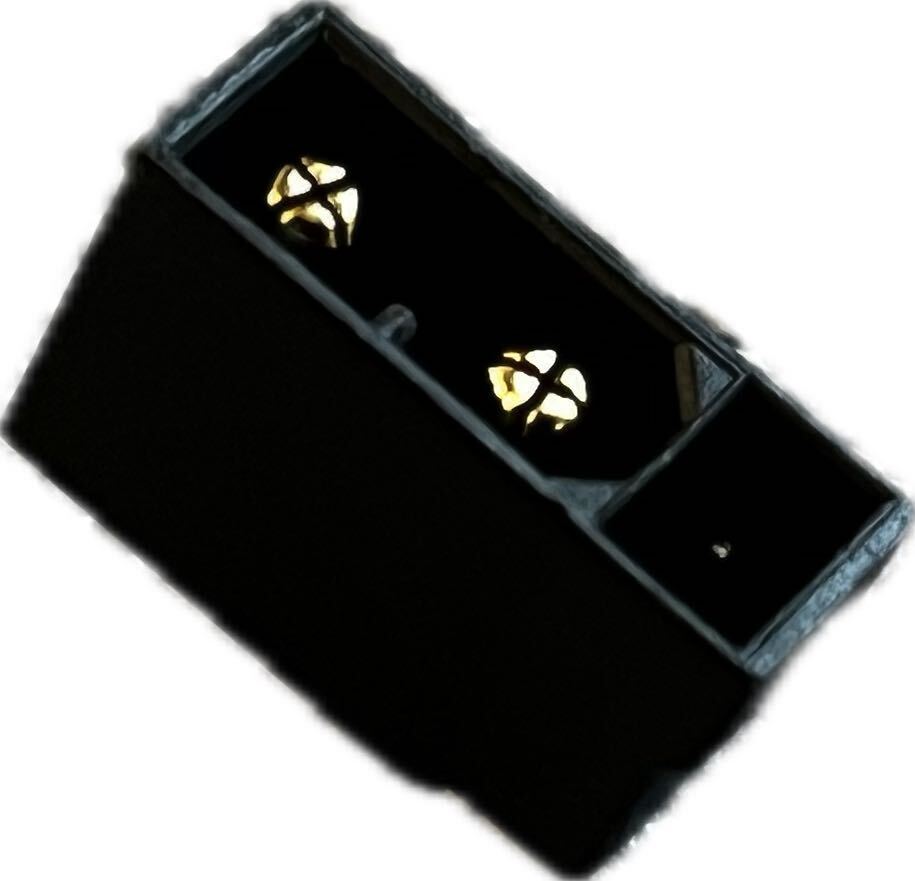

| Connector |  | C19268029 (do not need to purchase separately if using the LCSC PCB Assembly option) | 12 | ￥60 | ￥720 | LCSC |

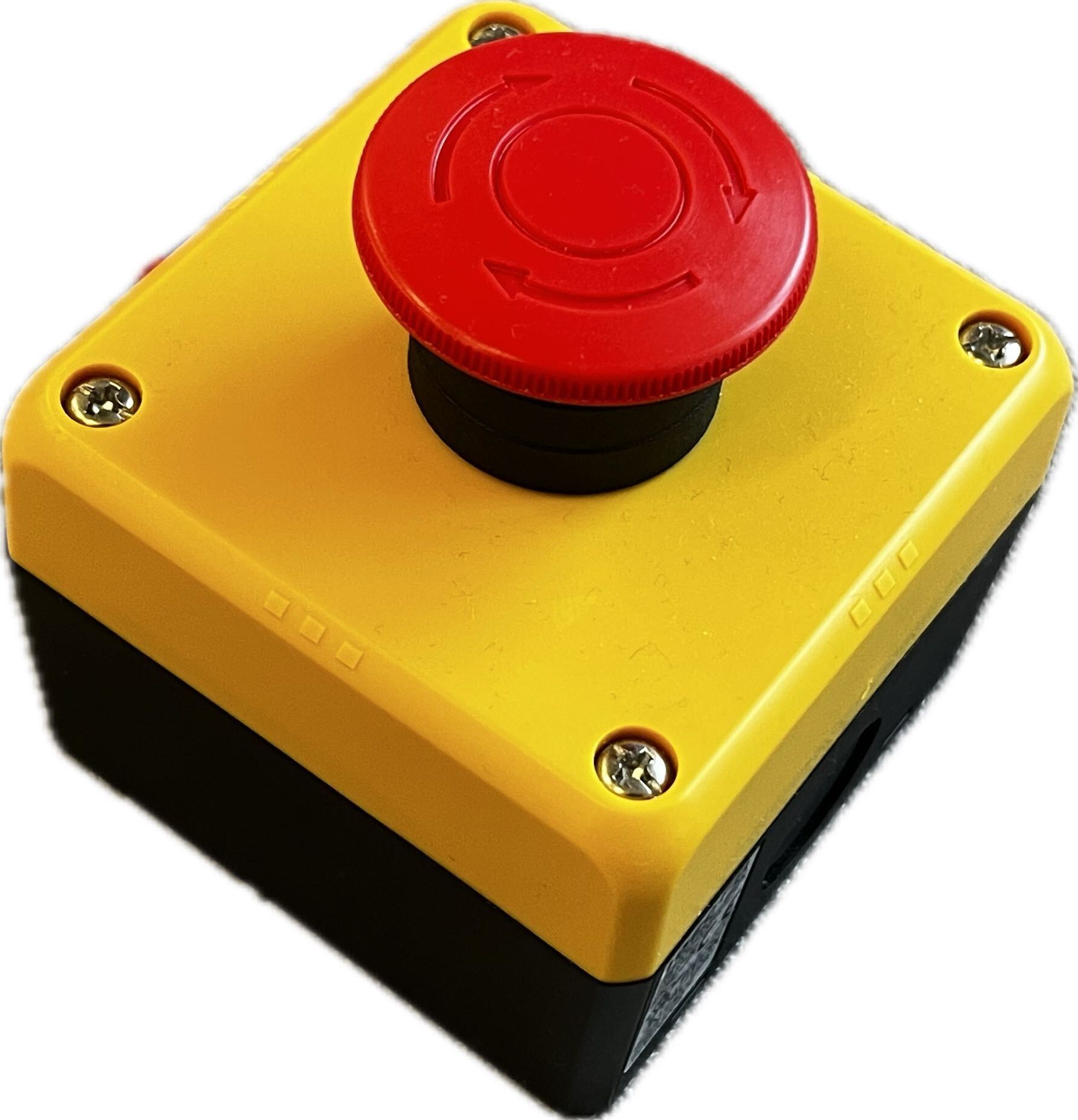

| Emergency Stop |  | Emergency Stop Purchase Link | 1 | ￥4,698 | ￥4,698 | Monotaro |
