Pedestal
Off-the-shelf Components
info
The estimated total cost of off-the-shelf components is ￥10,141
Here is the list of the components that can be purchased off-the-shelf:
| Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Supplier |
|---|---|---|---|---|---|---|
| 60x60 750mm Aluminum Extrusion |  | HFSB6-6060-750 | 1 | ￥2,760 | ￥2,760 | MiSUMi |

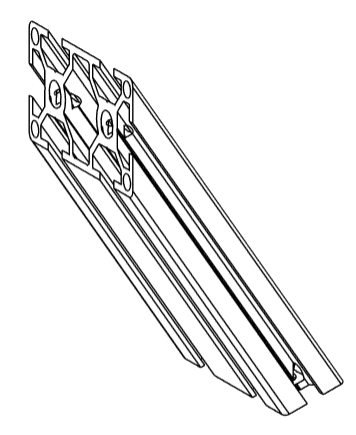

| 30x60 60 Degrees Aluminum Extrusion Reinforcement Bracket |  | HFBL30A6-3060-123-SSP | 1 | ￥4,069 | ￥4,069 | MiSUMi |

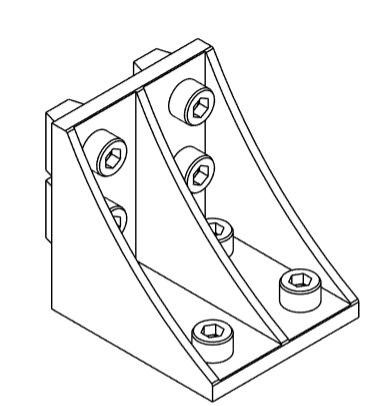

| M6 30/60 Angle Brackets + Bolt and Nut Set |  | HBLFSDW6-SEP | 2 | ￥888 | ￥1,776 | MiSUMi |
| Hexagonal Socket Head Bolts, Nickel Plated |  | CBM6-12 | 8 | ￥148 | ￥1,184 | MiSUMi |

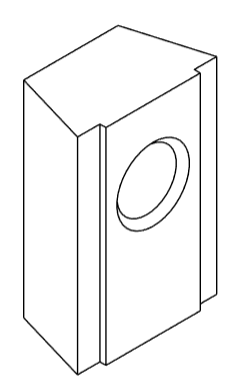

| Post-insertion spring nuts for aluminum frames for 6 series (groove width 8 mm) |  | HNTP6-6 | 8 | ￥44 | ￥352 | MiSUMi |
Manufactured Components
info
The estimated total cost of manufactured components is ￥10,081
Here is the list of the components that need to be manufactured:
| Name | Photo | Model Number | Quantity | Unit Price (JPY) | Total Price (JPY) | Manufacturing Method | Material | Manufacturer |
|---|---|---|---|---|---|---|---|---|

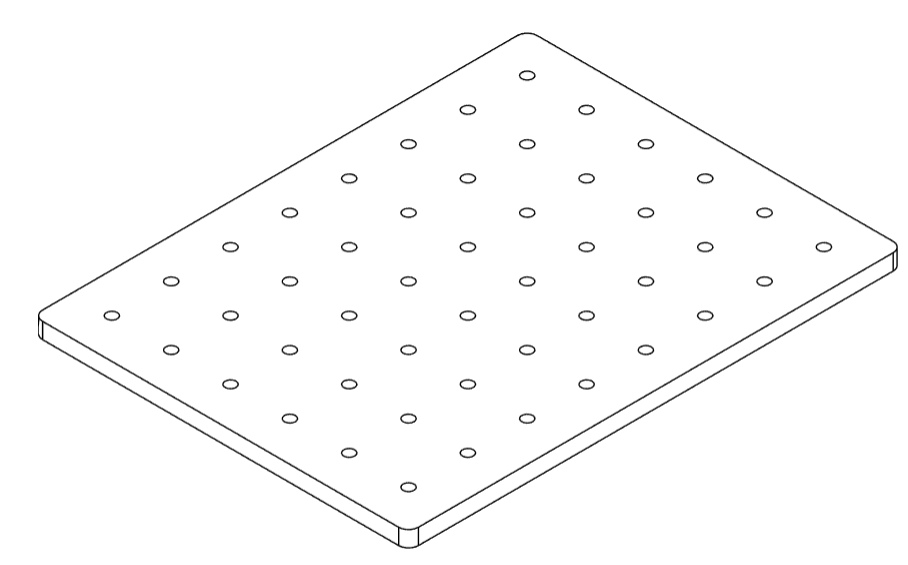

| 250x190mm Base Plate |  | MVBLK-ASN-48P-Y52TG-L | 1 | ￥10,081 | ￥10,081 | Metal Cutting (CNC) | Al6061 | MiSUMi MEVIY |
