OpenArm Description Package

Overview​

This OpenArm description package contains URDF/xacro description files for the OpenArm robot system, supporting both single-arm and bimanual configurations.

Table of Contents​

Xacro Structure​

The package follows a hierarchical xacro structure with the following organization.

Robot (Overarching Structure)​

  • robot/openarm_robot.xacro - Main robot macro that orchestrates all components
  • robot/v10.urdf.xacro - Entry point for v1.0 arm configuration

Component Structure​

  • arm/ - Arm kinematics, joints, and links
    • openarm_arm.xacro - Arm assembly
    • openarm_macro.xacro - Arm macro definitions
  • body/ - Robot base/body components
    • openarm_body.xacro - Body assembly
    • openarm_body_macro.xacro - Body macro definitions
  • ee/ - End-effector components
    • openarm_hand.xacro - OpenArm hand gripper
    • openarm_hand_macro.xacro - Hand macro definitions
    • ee_with_one_link.xacro - Simple single-link end-effector
  • ros2_control/ - ROS2 Control with hardware interfaces
    • openarm.ros2_control.xacro - Single arm control interface
    • openarm.bimanual.ros2_control.xacro - Bimanual control interface

Configuration Files​

  • config/arm/v10/ - v1.0 arm parameters (kinematics, limits, inertials)
  • config/body/v10/ - v1.0 body parameters
  • config/hand/openarm_hand/ - Hand configuration

Installation​

To use this package, make sure you have: ROS2 installed Then set up the workspace:

# Set up environment variables if you haven't already (customize as needed)
export ROS_DISTRO=humble  # Change to your ROS2 distro (humble, iron, jazzy, etc.)
export ROS_WS=~/ros2_ws   # Customize workspace path

# Head to the workspace
cd $ROS_WS/src

# Source your ros2 distro
source /opt/ros/$ROS_DISTRO/setup.bash

# Clone the package
git clone https://github.com/enactic/openarm_description.git

# Build the workspace
cd $ROS_WS
colcon build

# Source the workspace
source $ROS_WS/install/setup.bash

Universal Robot Description Files (URDF)​

The coordinate transforms of each link and joint constraints of OpenArm are defined in the URDF. ROS2 uses a XML macro language called xacro to generate these files.

Generate URDF Files​

Single Arm Configuration​

# Basic single arm with hand
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=false > openarm_single.urdf

# Single arm without end-effector
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=false ee_type:=none > openarm_single_no_ee.urdf

# Single arm with ROS2 control
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=false ros2_control:=true can_interface:=can0 > openarm_single_control.urdf

Bimanual Configuration​

# Basic bimanual setup
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=true > openarm_bimanual.urdf

# Bimanual with ROS2 control
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=true ros2_control:=true left_can_interface:=can1 right_can_interface:=can0 > openarm_bimanual_control.urdf

# Bimanual with fake hardware for simulation
xacro $ROS_WS/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=true ros2_control:=true use_fake_hardware:=true > openarm_bimanual_sim.urdf

Visualization​

To display the robot in RViz with a simple joint state GUI:

tip

If you're receiving errors regarding the .dae files, try changing mesh formats to .stl or .obj.

Single Arm​

# Display single arm with hand
ros2 launch openarm_description display_openarm.launch.py arm_type:=v10 bimanual:=false

# Display single arm without end-effector
ros2 launch openarm_description display_openarm.launch.py arm_type:=v10 bimanual:=false ee_type:=none

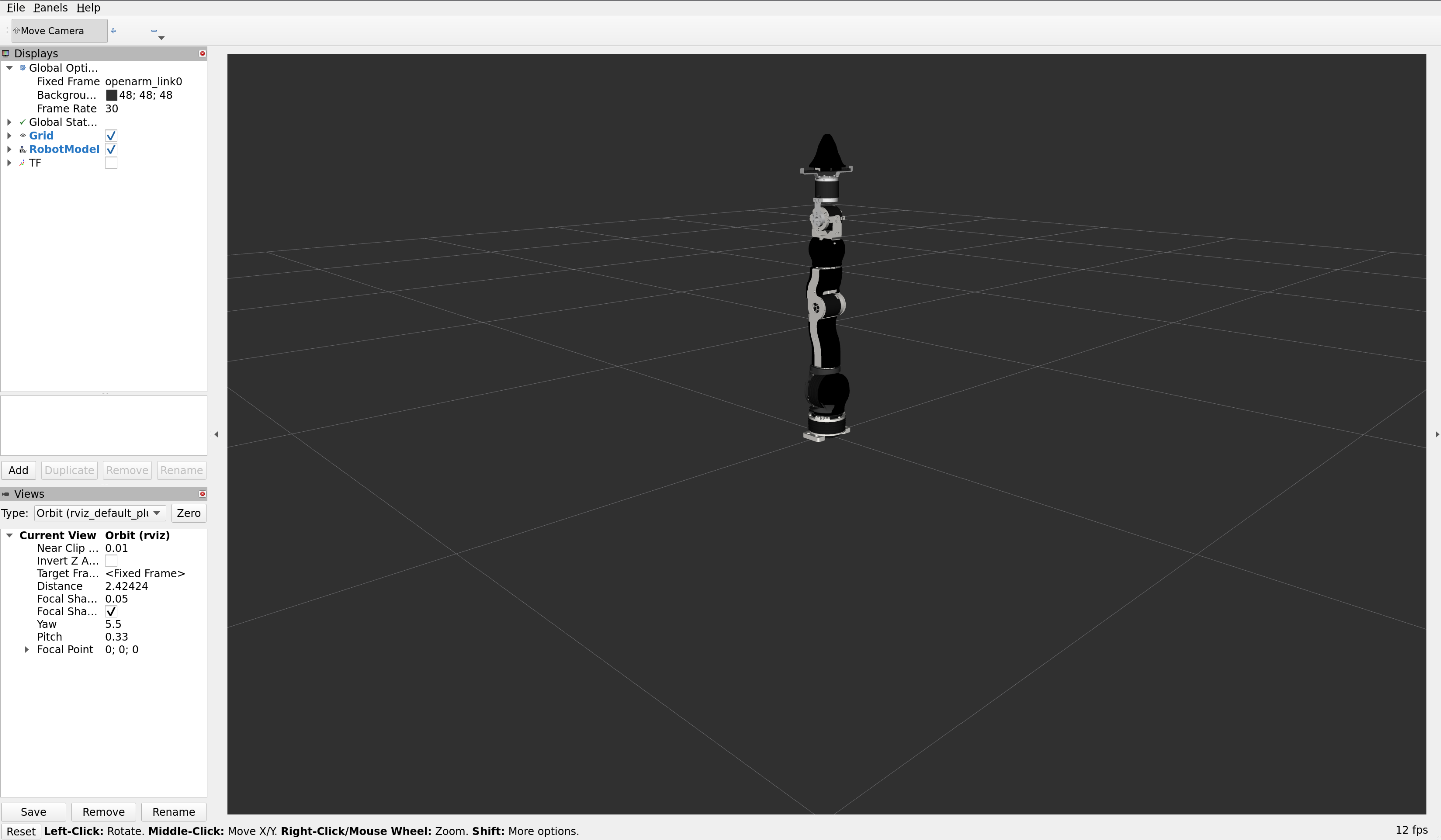

Single Arm URDF Rviz

Bimanual​

# Display bimanual configuration
ros2 launch openarm_description display_openarm.launch.py arm_type:=v10 bimanual:=true

# Display bimanual without end-effectors
ros2 launch openarm_description display_openarm.launch.py arm_type:=v10 bimanual:=true ee_type:=none

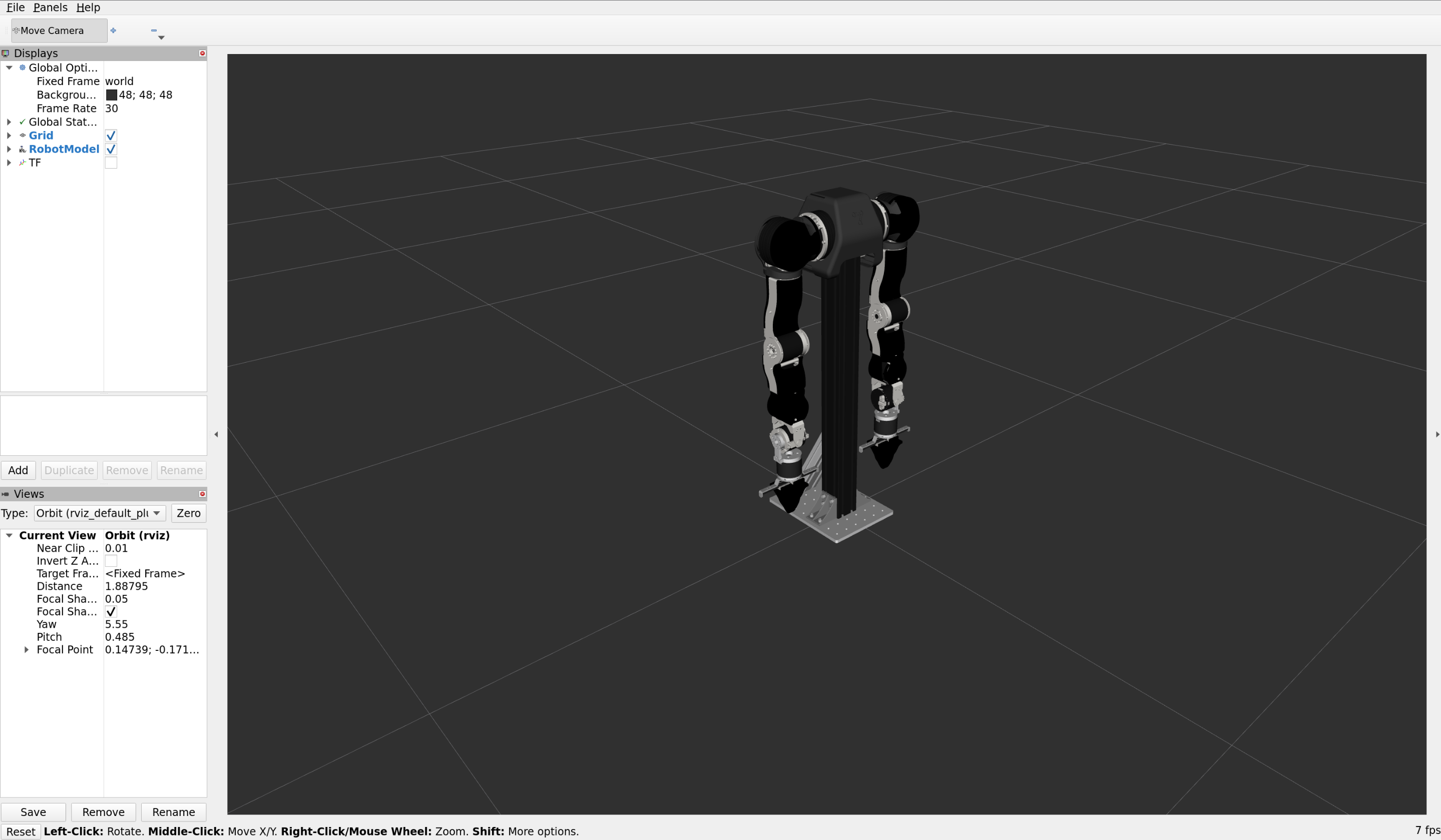

Bimanual URDF Rviz

Exporting URDFs​

Sometimes, it may be necessary to export a URDF for use in other applications. To generate a new URDF file, run the xacro command with arguments.

To generate a bimanual URDF:

URDF_OUT=openarm_bimanual.urdf
xacro ~/ros2_ws/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 bimanual:=true > $URDF_OUT

Or a single arm URDF:

URDF_OUT=openarm.urdf
xacro ~/ros2_ws/src/openarm_description/urdf/robot/v10.urdf.xacro arm_type:=v10 > $URDF_OUT

Available Arguments​

Below are some configurable variables for the OpenArm robot description that allows customization when generating URDFs with xacro.

Core Arguments​

  • arm_type - Arm version (eg.: "v10")
  • body_type - Body version (eg.: "v10")
  • ee_type - End-effector type (default: "openarm_hand", options: "openarm_hand", "none")
  • bimanual - Enable bimanual configuration (default: false)

ROS2 Control Arguments​

  • ros2_control - Enable ROS2 control hardware interface (default: false)
  • use_fake_hardware - Use fake hardware for simulation (default: false)
  • fake_sensor_commands - Enable fake sensor commands (default: false)
  • can_interface - CAN interface for single arm (default: "can0")
  • left_can_interface - CAN interface for left arm in bimanual setup (default: "can1")
  • right_can_interface - CAN interface for right arm in bimanual setup (default: "can0")

Positioning Arguments​

  • parent - Parent frame (default: "world")
  • xyz - Position offset (default: "0 0 0")
  • rpy - Orientation offset (default: "0 0 0")
  • left_arm_base_xyz - Left arm base position (default: "0.0 0.031 0.698")
  • left_arm_base_rpy - Left arm base orientation (default: "-1.5708 0 0")
  • right_arm_base_xyz - Right arm base position (default: "0.0 -0.031 0.698")
  • right_arm_base_rpy - Right arm base orientation (default: "1.5708 0 0")

Running Multiple Robots with ROS Namespaces and ROS_DOMAIN_ID​

When running multiple instances of OpenArm, one option is to namespace arms to control multiple sets of arms with one device.

For example, when running multiple instances of bimanual, it is possible to namespace packages with:

ros2 launch openarm.bimanual.launch.py arm_prefix:=leader right_can_interface:=can0 left_can_interface:=can1

and

ros2 launch openarm.bimanual.launch.py arm_prefix:=follower right_can_interface:=can2 left_can_interface:=can3

If network isolation is required (e.g. multiple sets of OpenArm teleoperation), the ROS_DOMAIN_ID environment variable can be set.
