0. Components

Cables

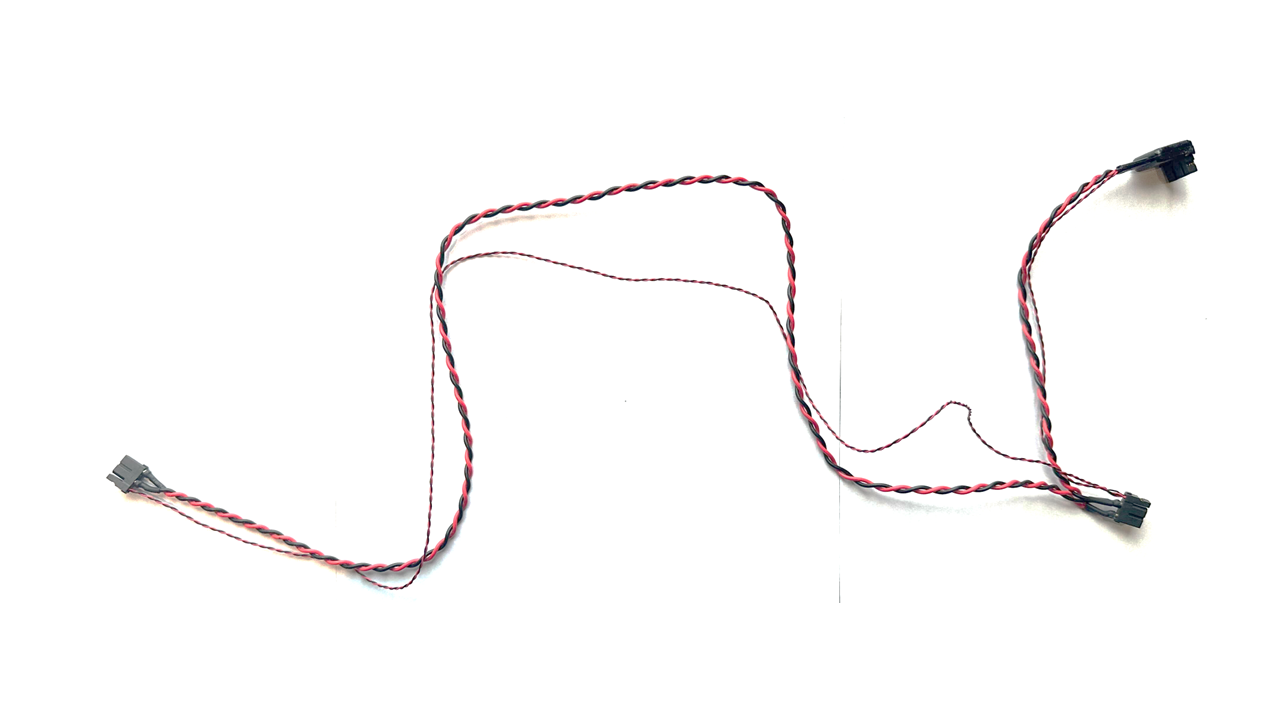

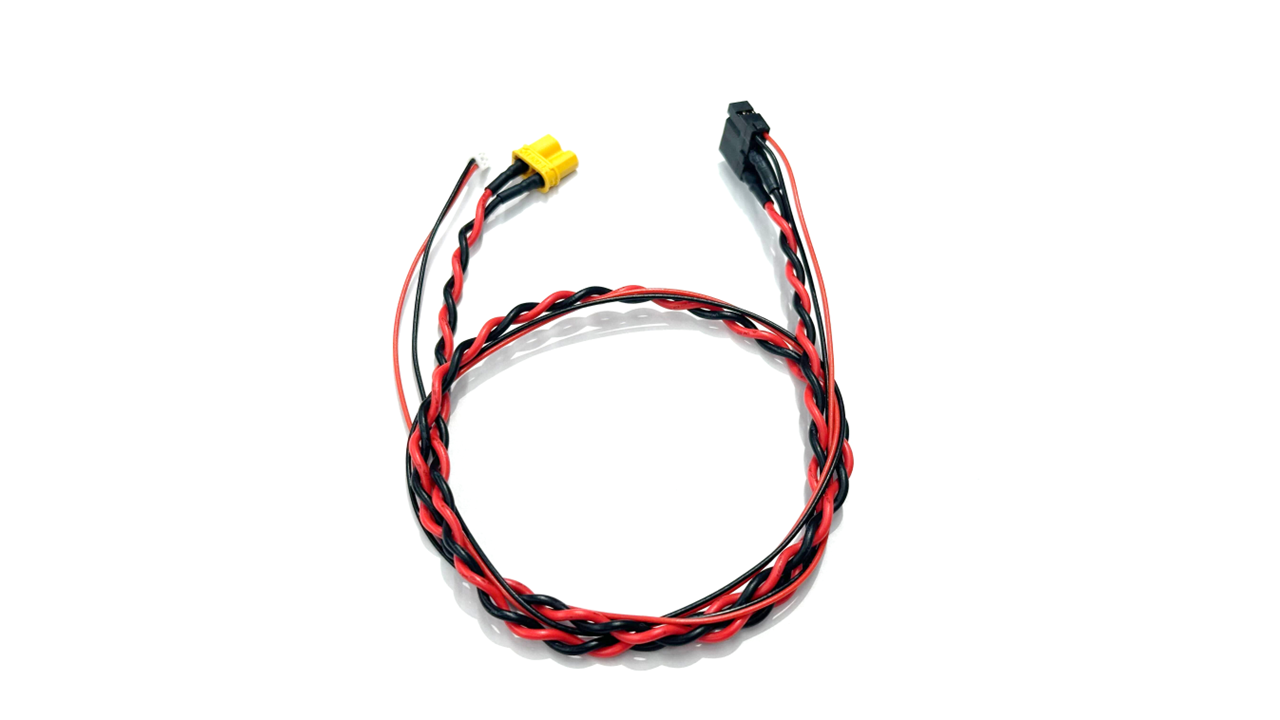

J1 & J2 x4	J3-J4 x2	J4-J7 x2

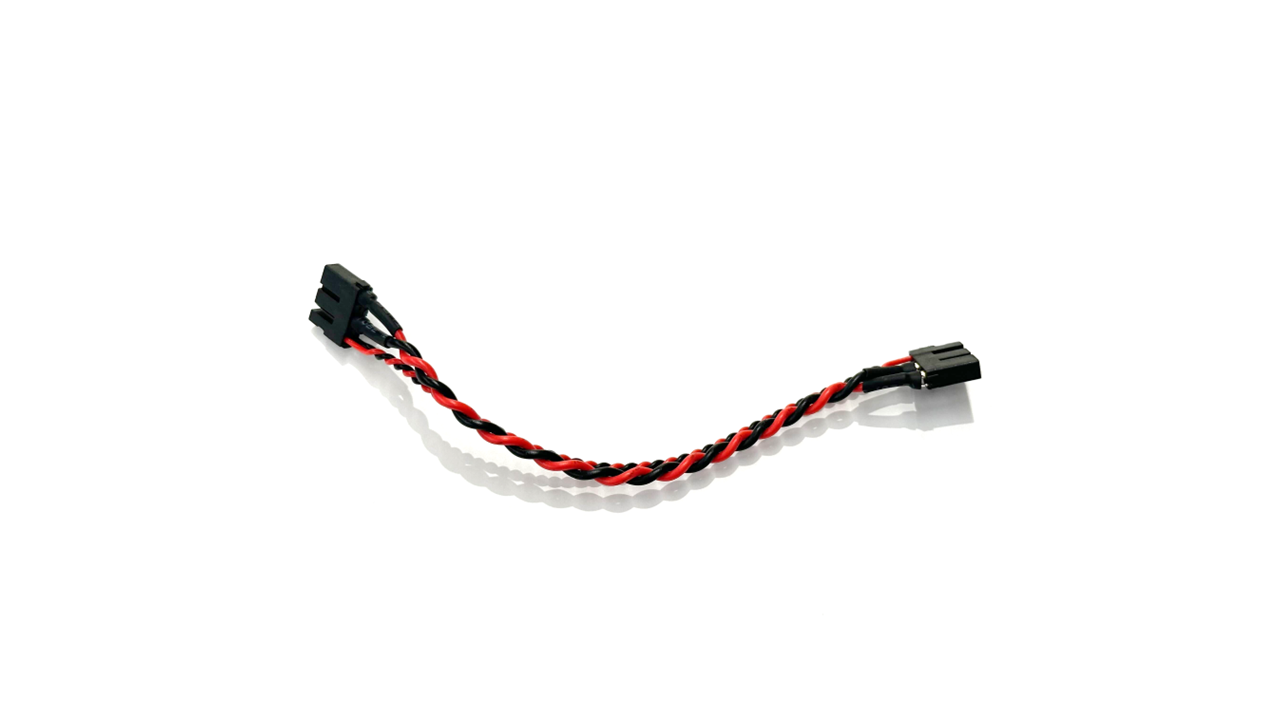

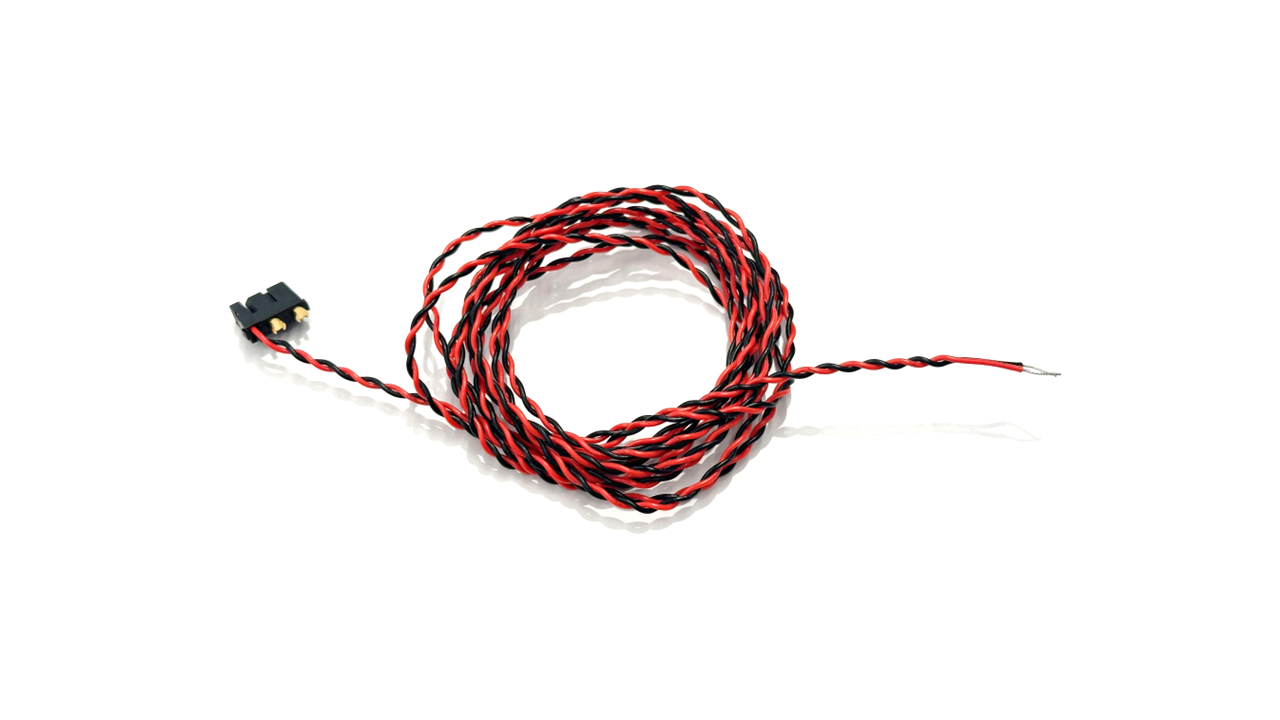

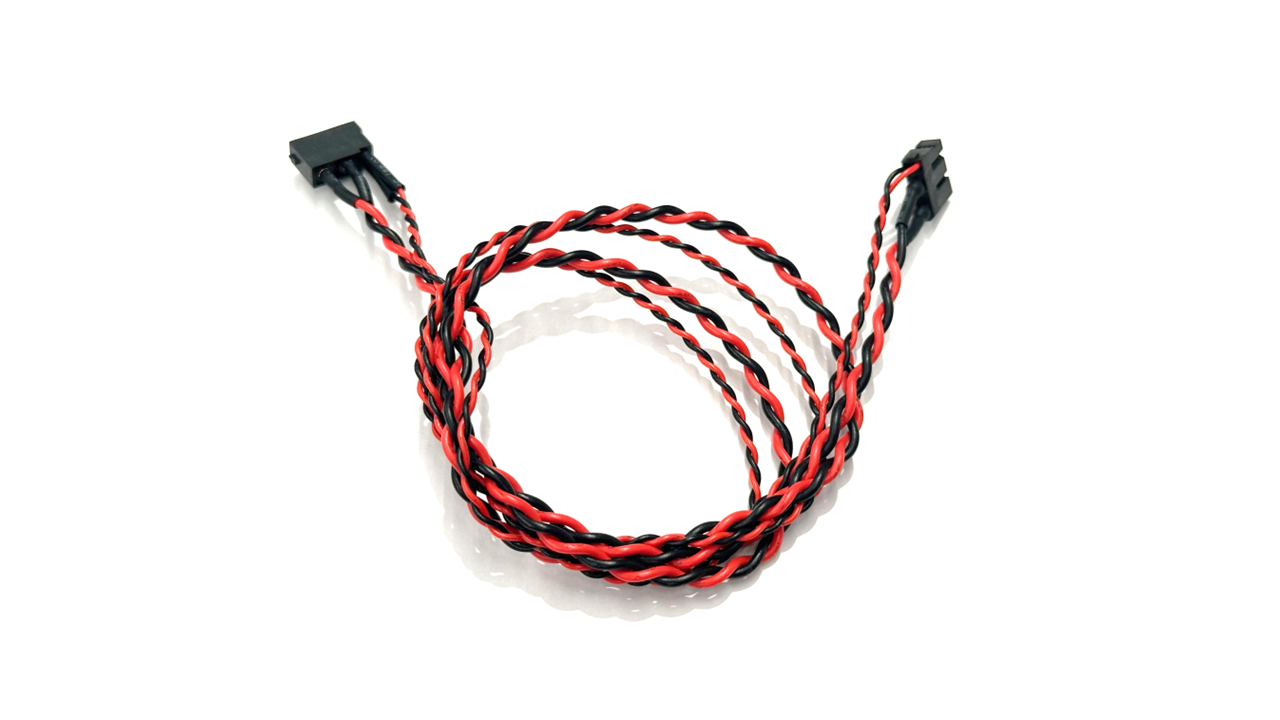

J7-J8 x2	Communication x2	Power extension x2

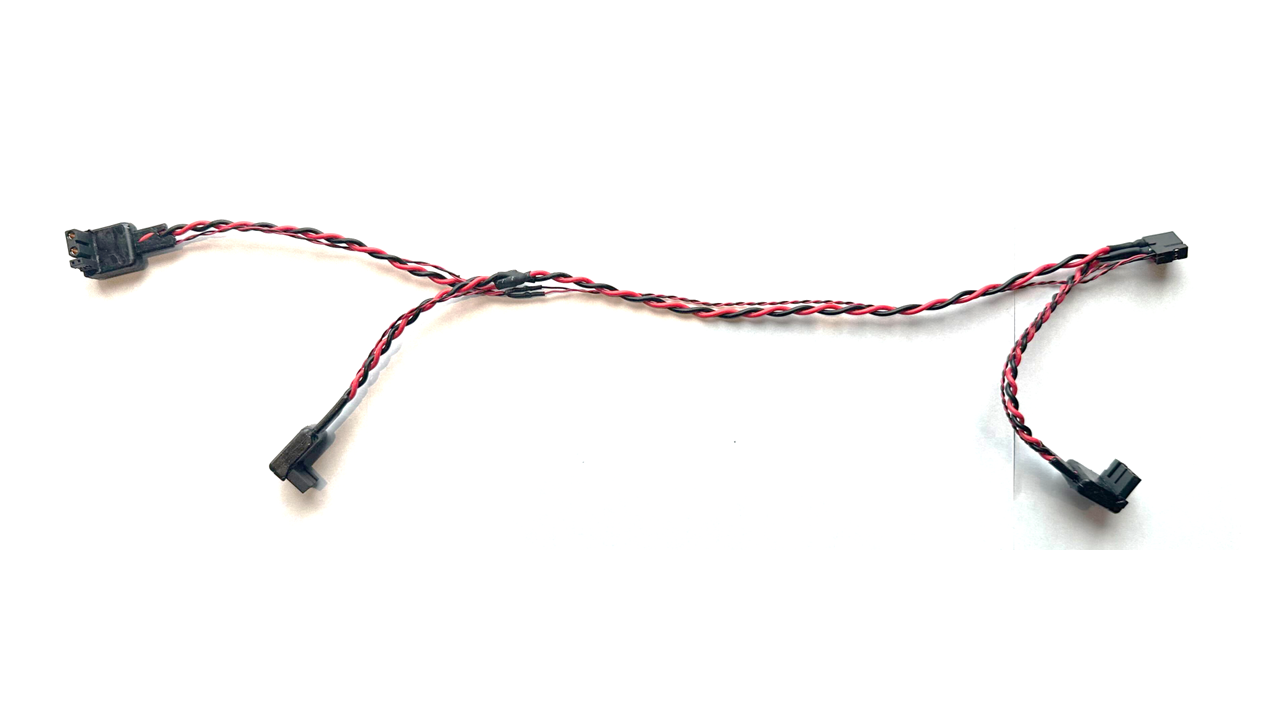

Notes on the J4+J5+J6+J7 to Hub Cable.

Summary

There is an interference issue with the connector, and customization is required for cables purchased from LCSC.

This issue does not occur with the multiple manufacturers producing OpenArm units.

L-Shaped Connector (Enactic In-house Method)

It needs to be modified if the cable was purchased from LCSC.

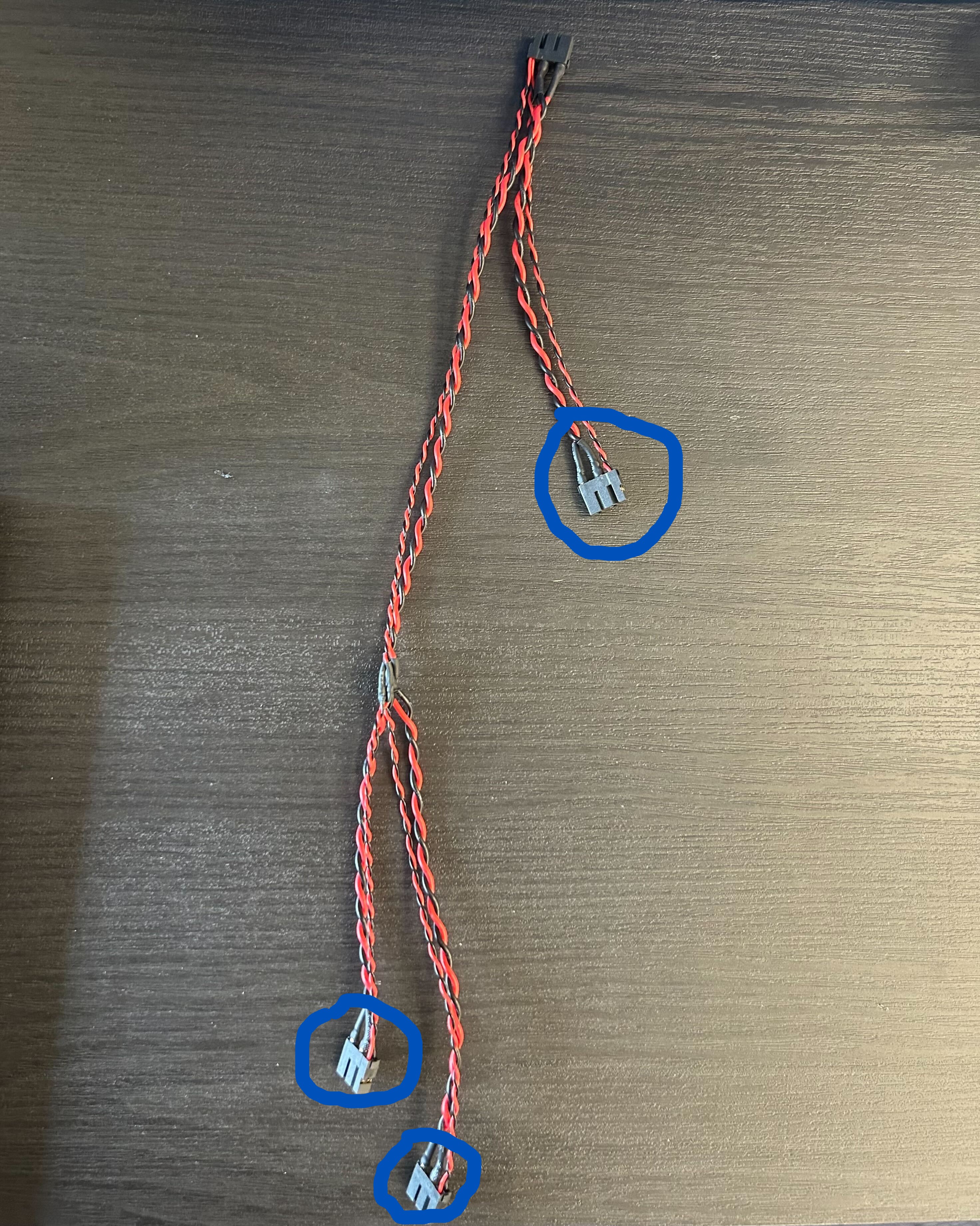

Process the custom L-shaped connector as indicated by the blue circles in the images below.

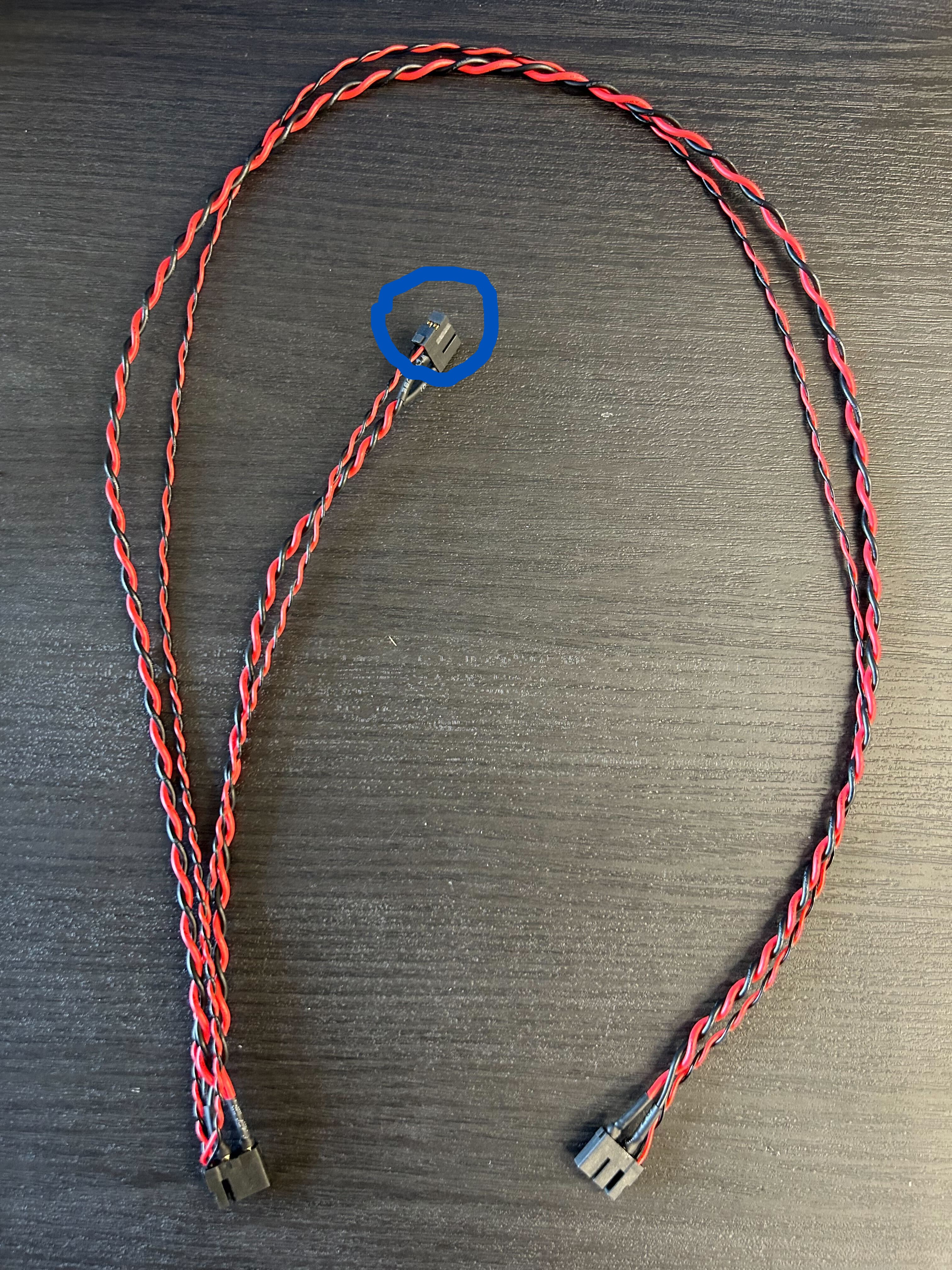

Left: J3–J4

Right: J4–J7

Processing Steps

3D Data: Google Drive

mold: cables_L-shapedMold.step
black case: cables_L-shapedCase.step

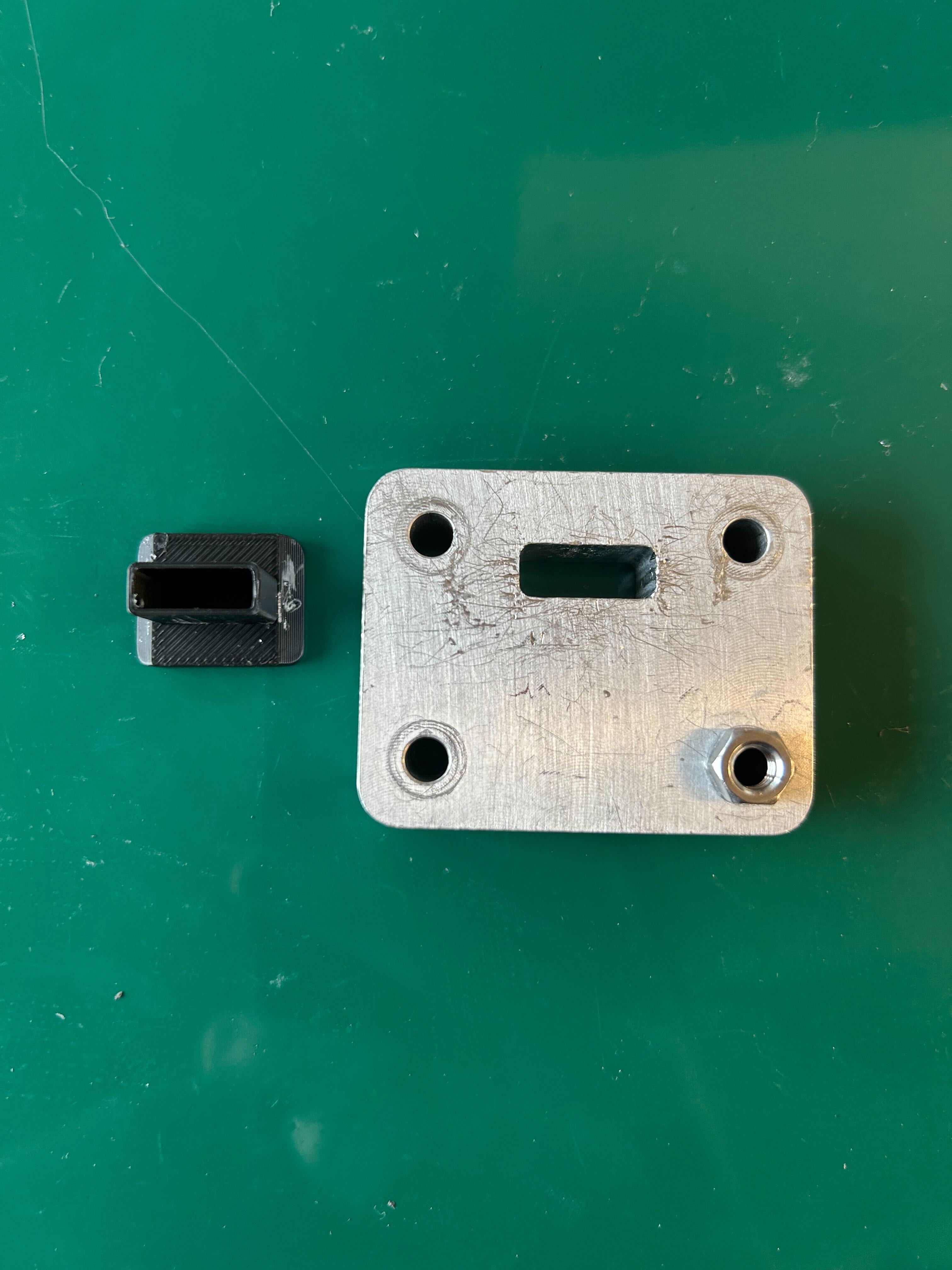

1. Prepare the mold and the black case, then insert the black case into the mold.

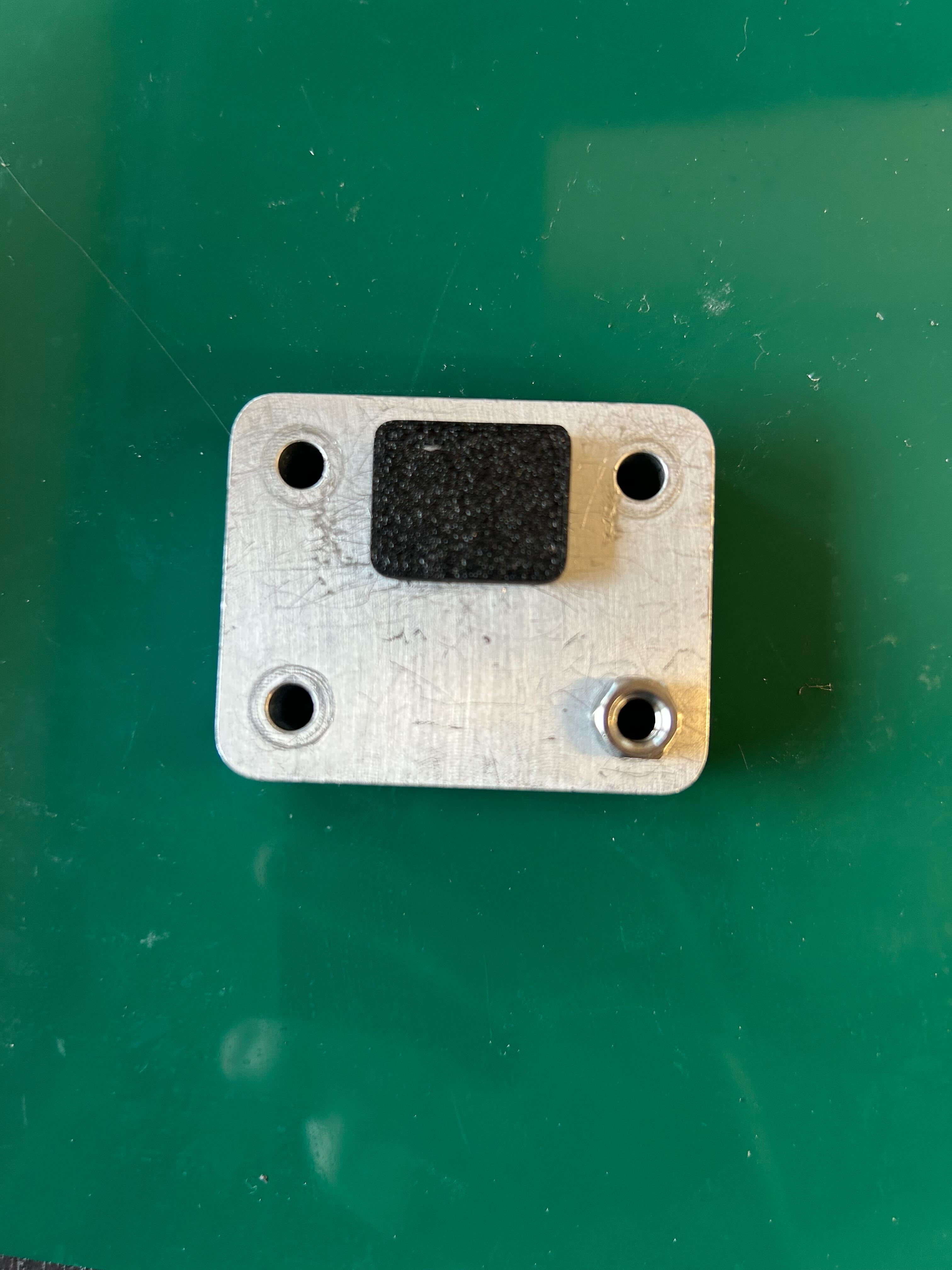

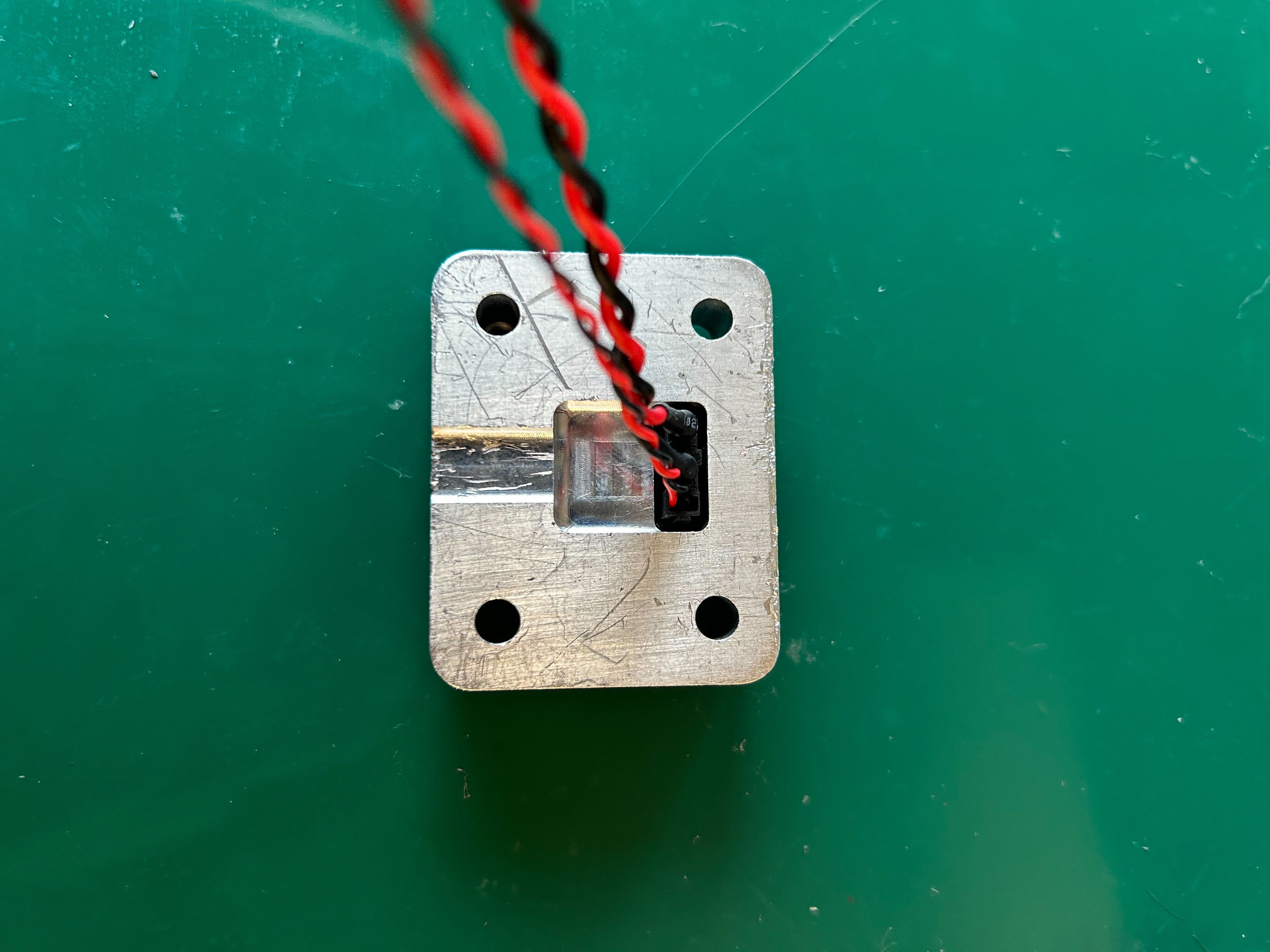

2. Place the mold with the recessed side facing upward, and insert the terminal that will be bent into an L shape.

note

Ensure the thin cable coming out of the terminal is on the right side.

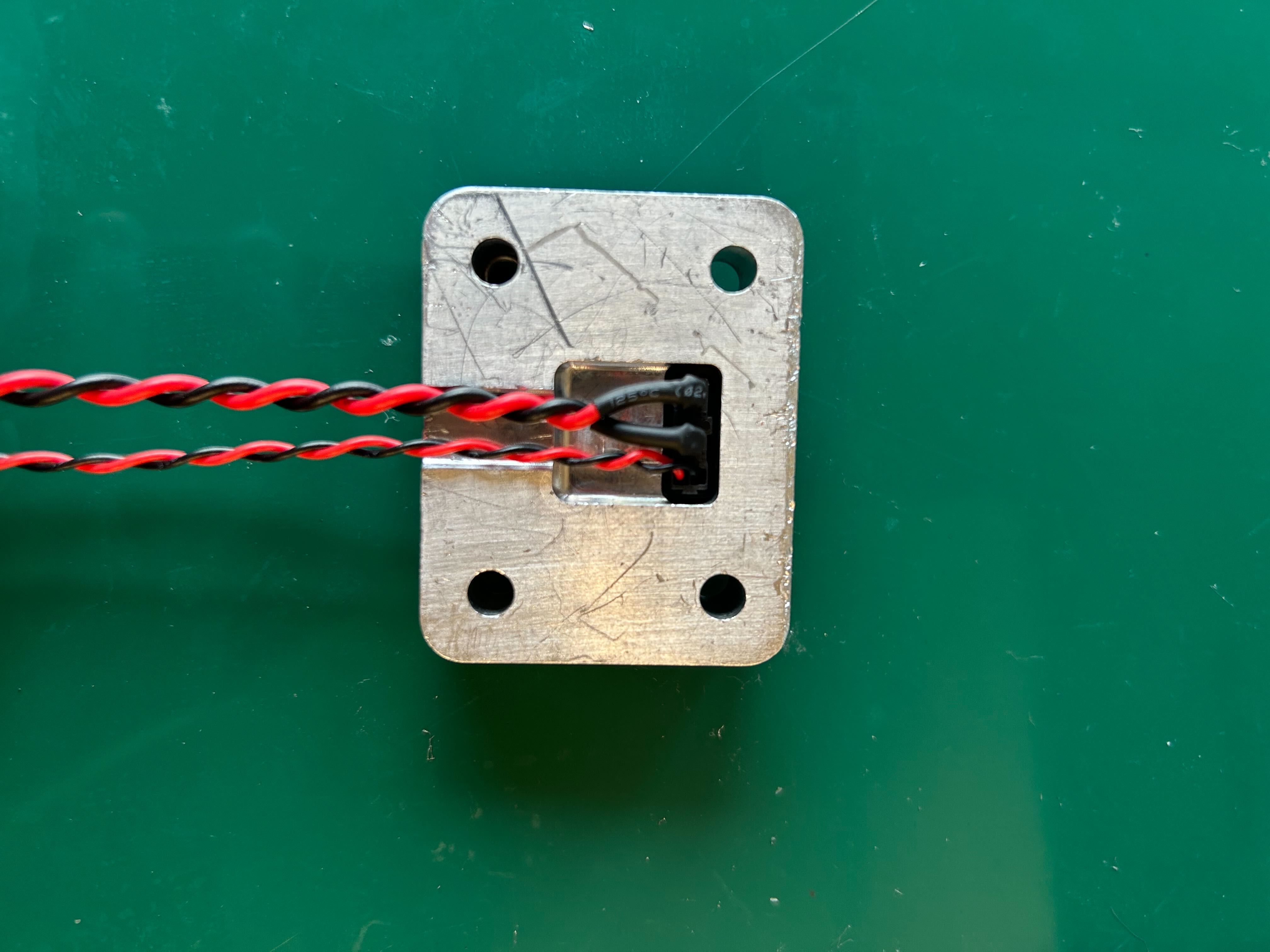

3. Firmly bend the cable until it lies flat.

4. Prepare the mold cover and place it on top.

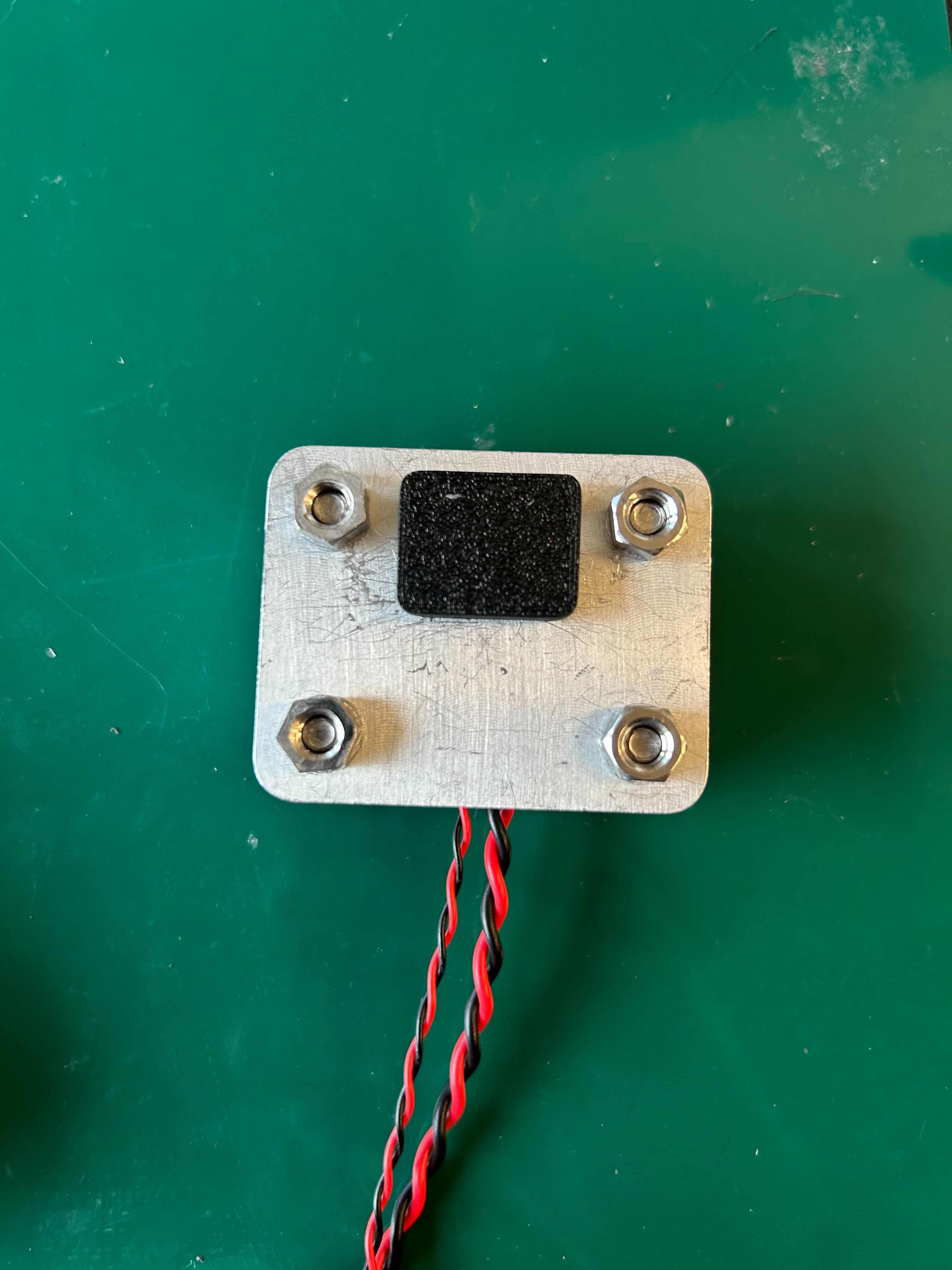

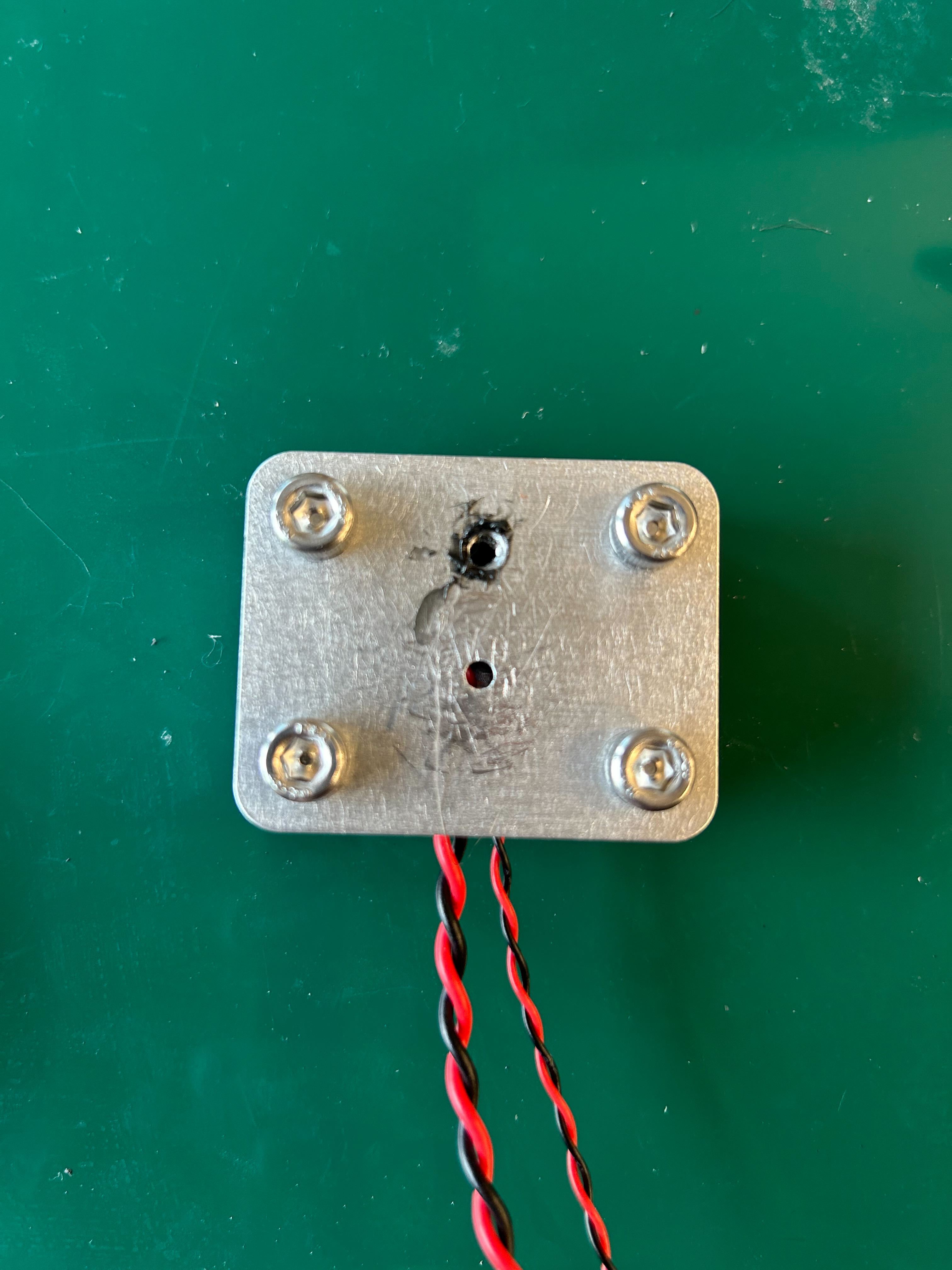

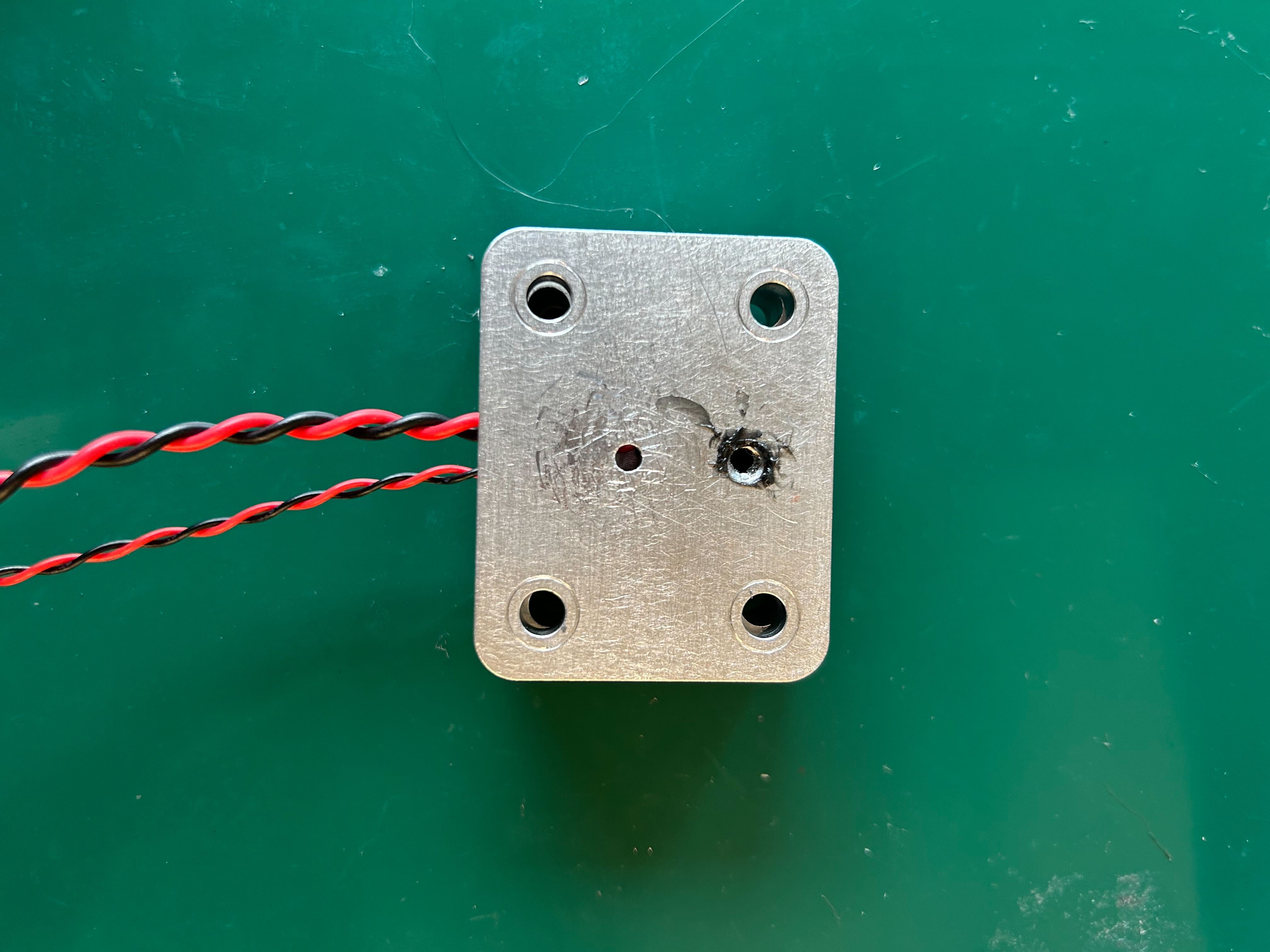

5. Secure the four corners with nuts and screws.

6. Turn the mold over.

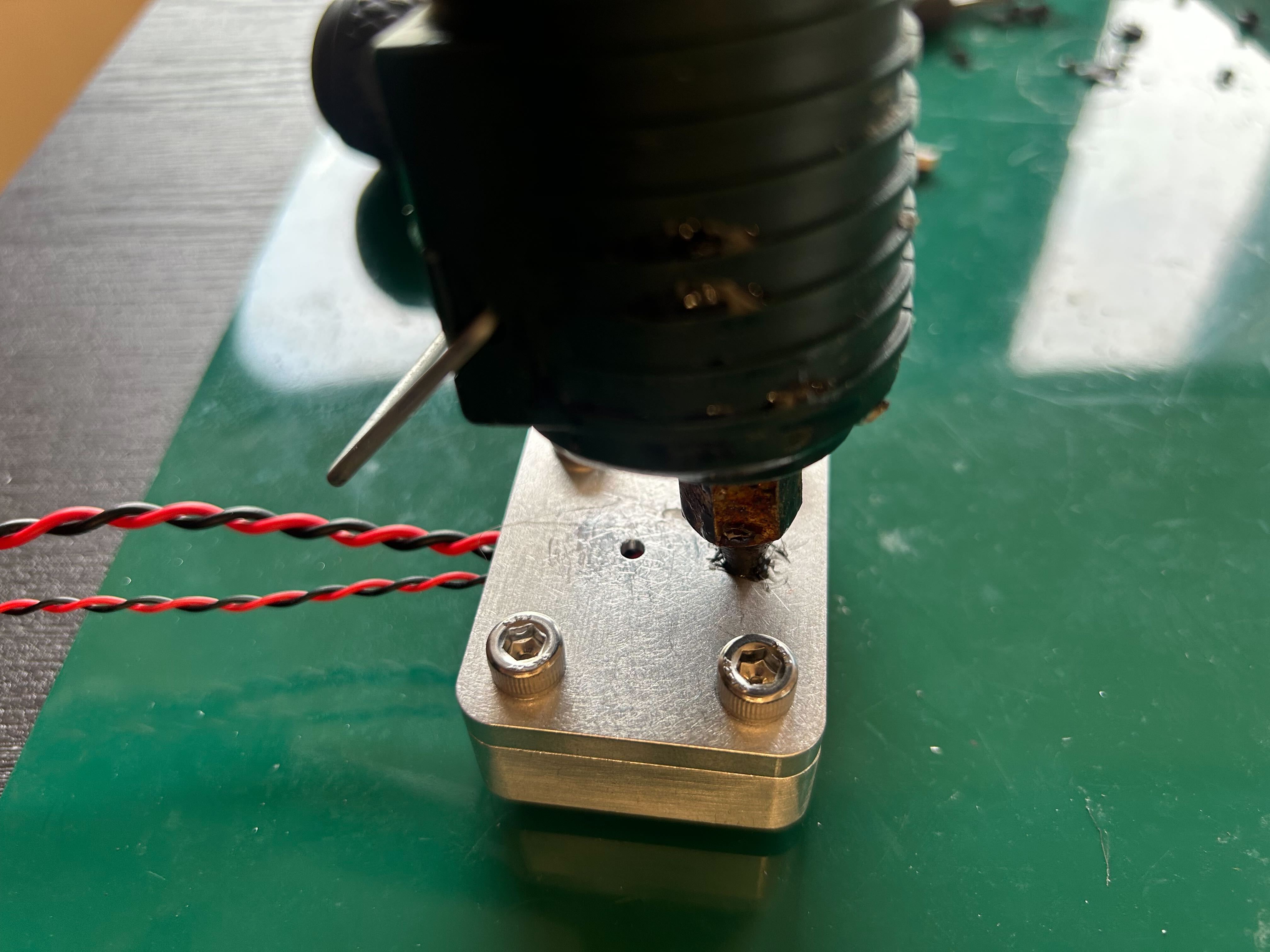

7. Melt the hot glue stick and inject it into the outer holes.

note

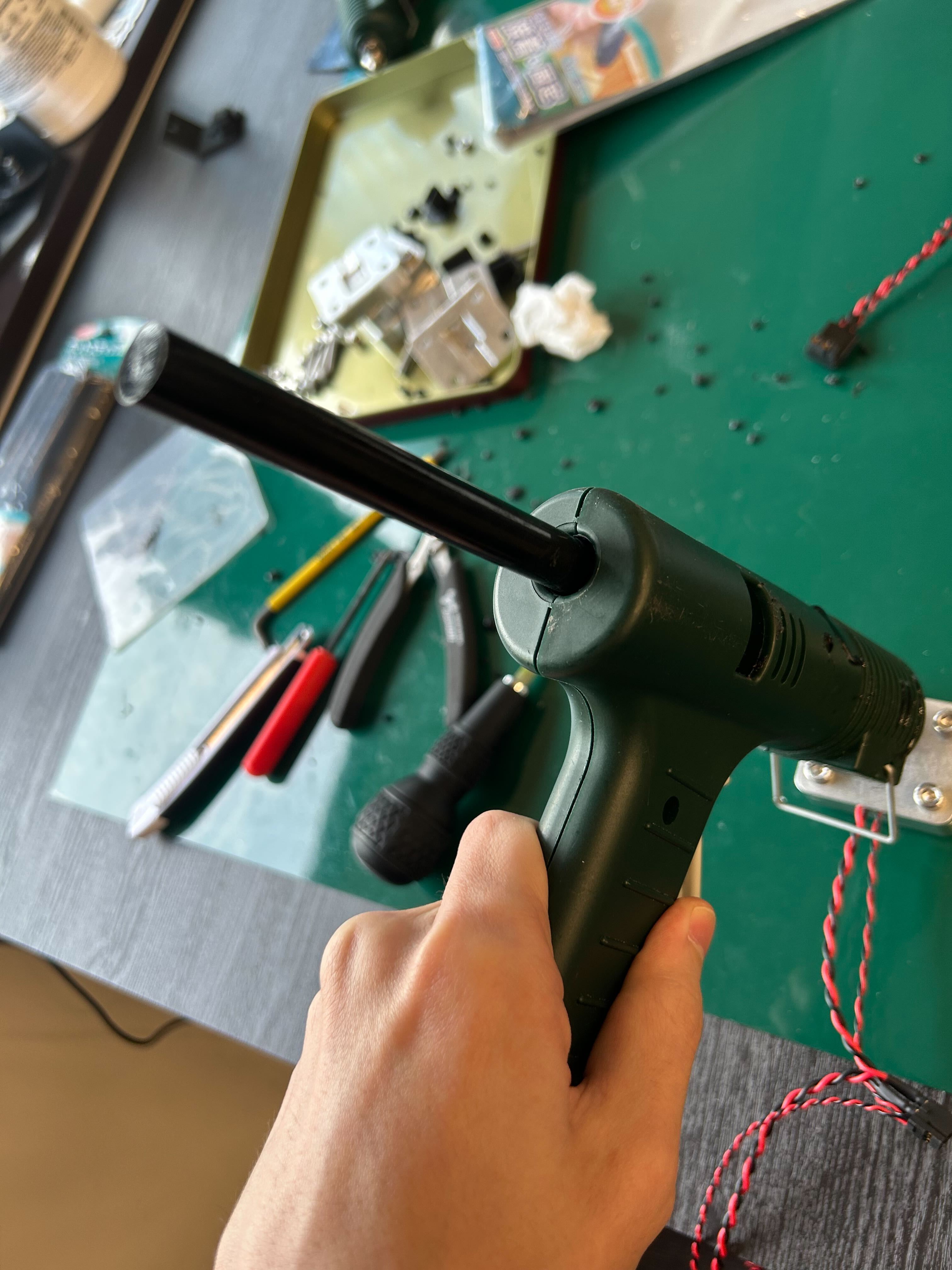

Do not pull the trigger. Instead, press the glue stick itself firmly to melt and push it in.

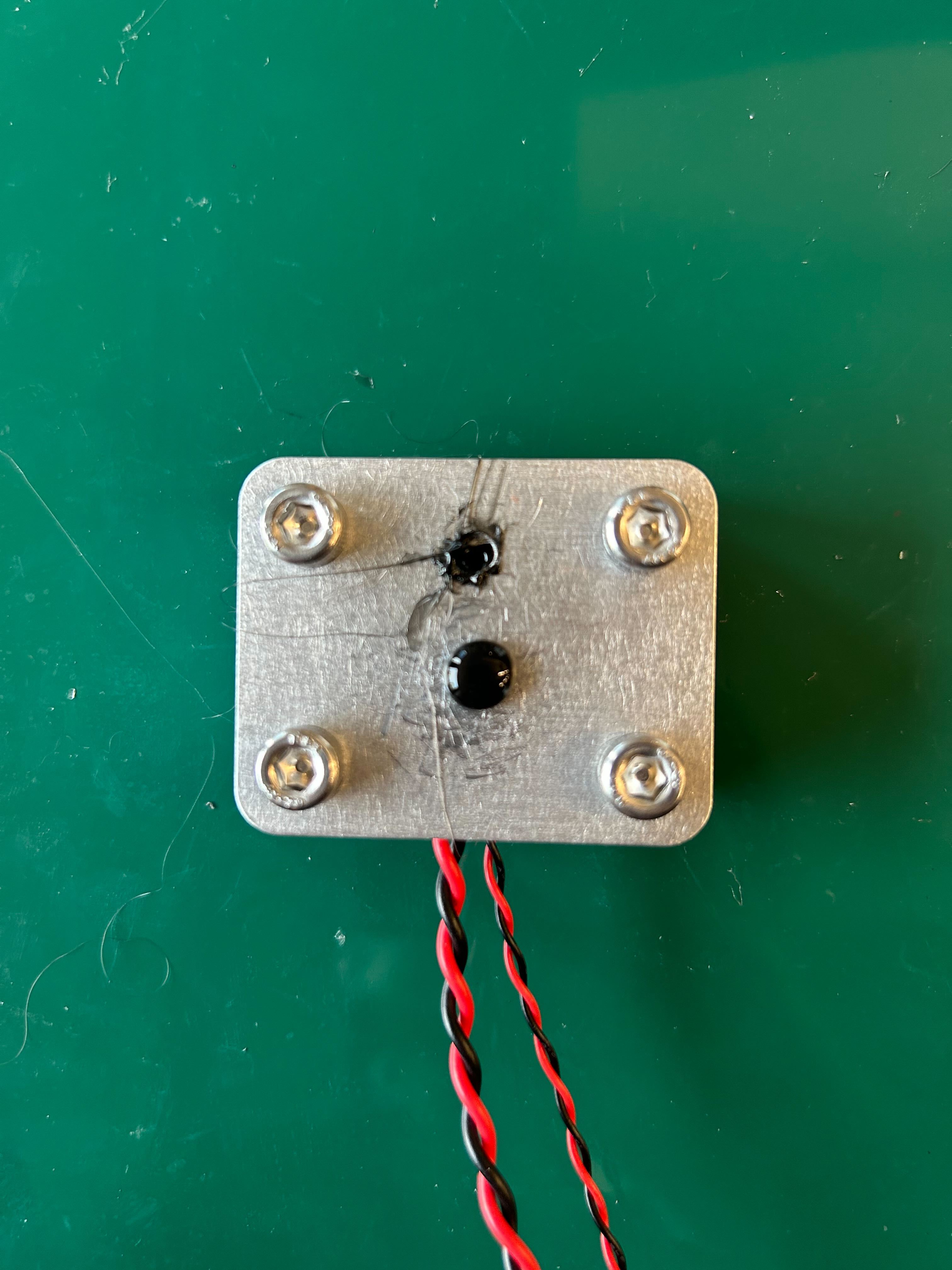

8. When the melted glue comes out from the middle hole as shown below, the process is complete.

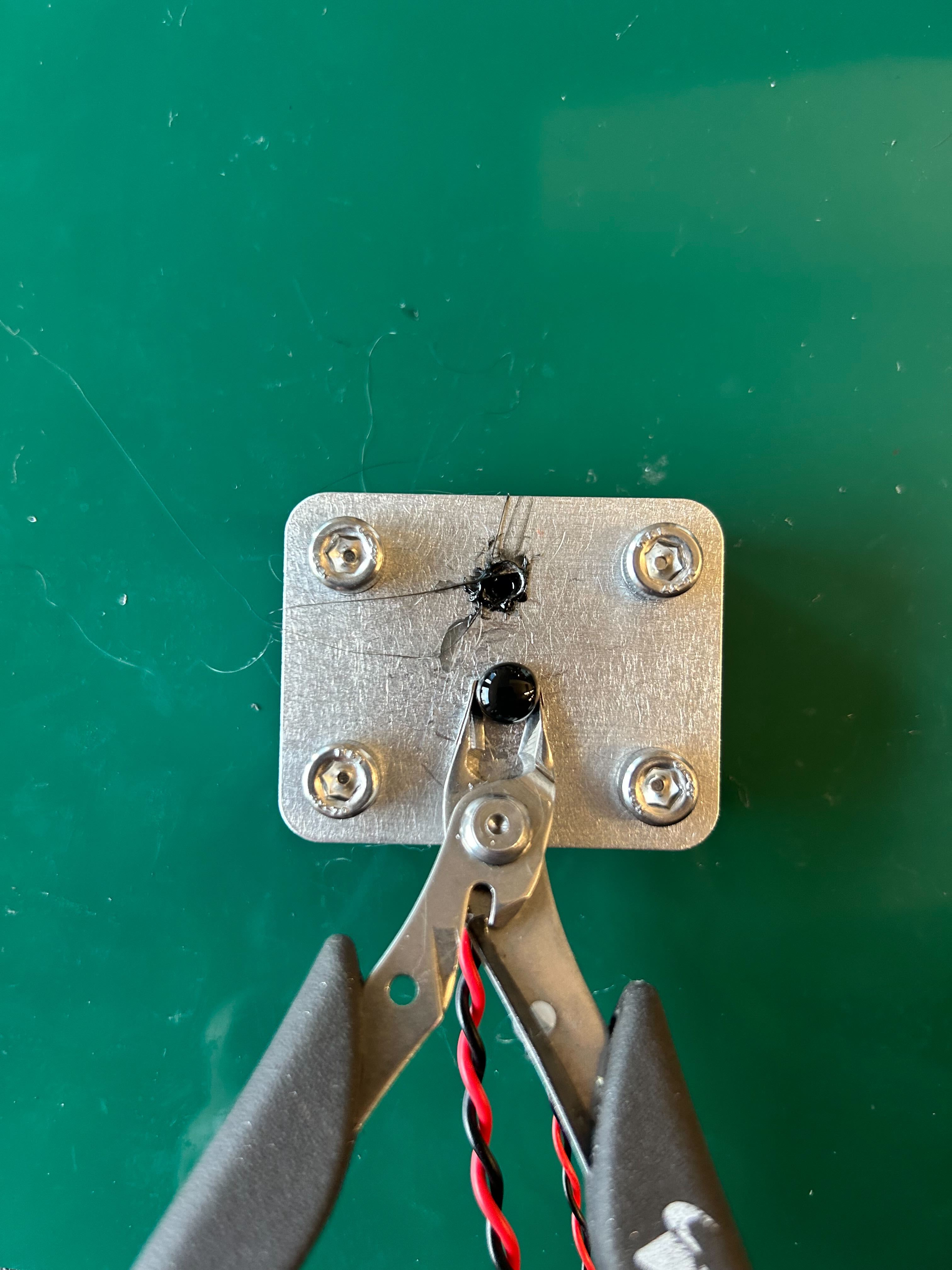

9. Wait about two minutes, then cut off the hardened glue with nippers.

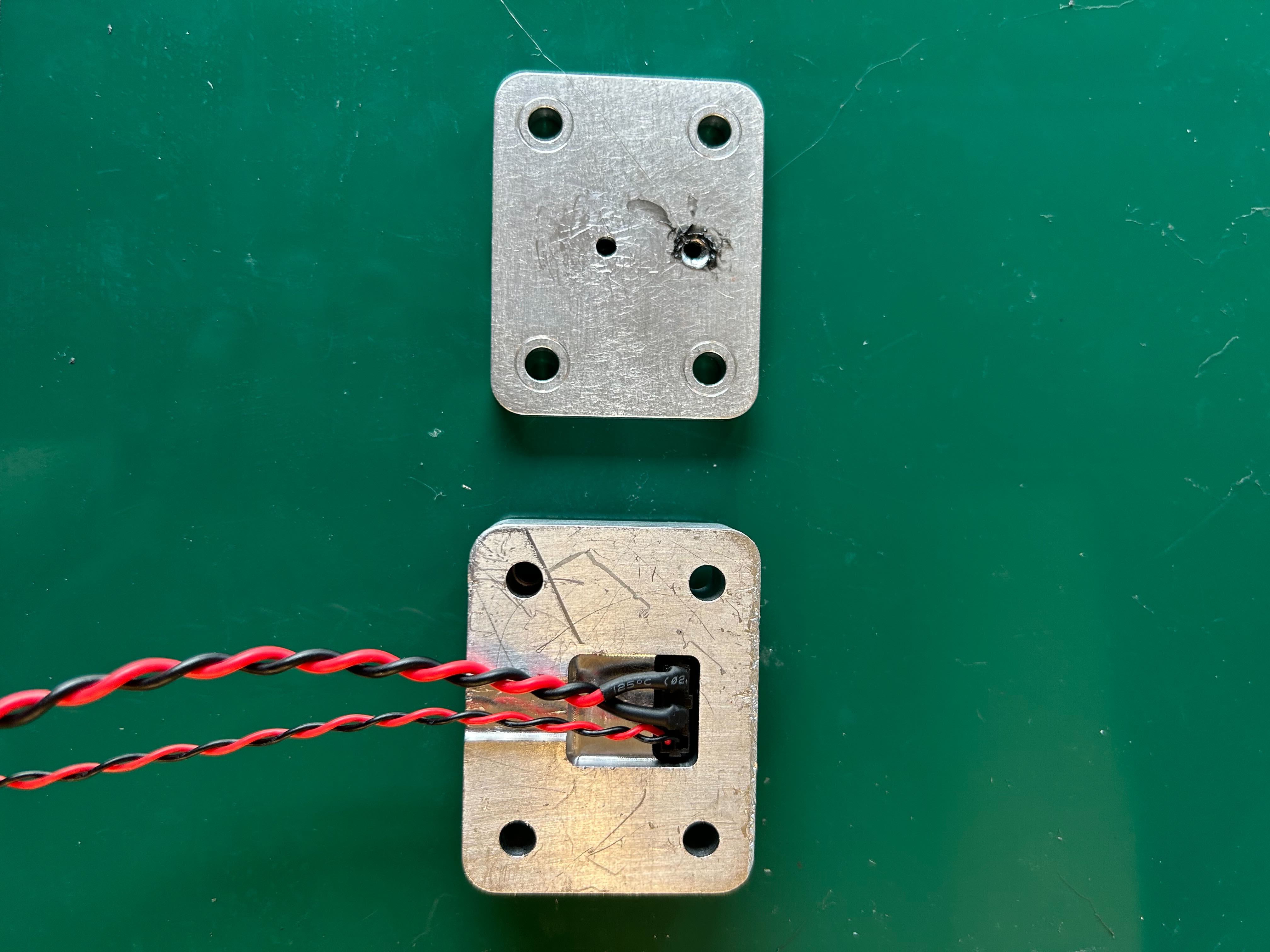

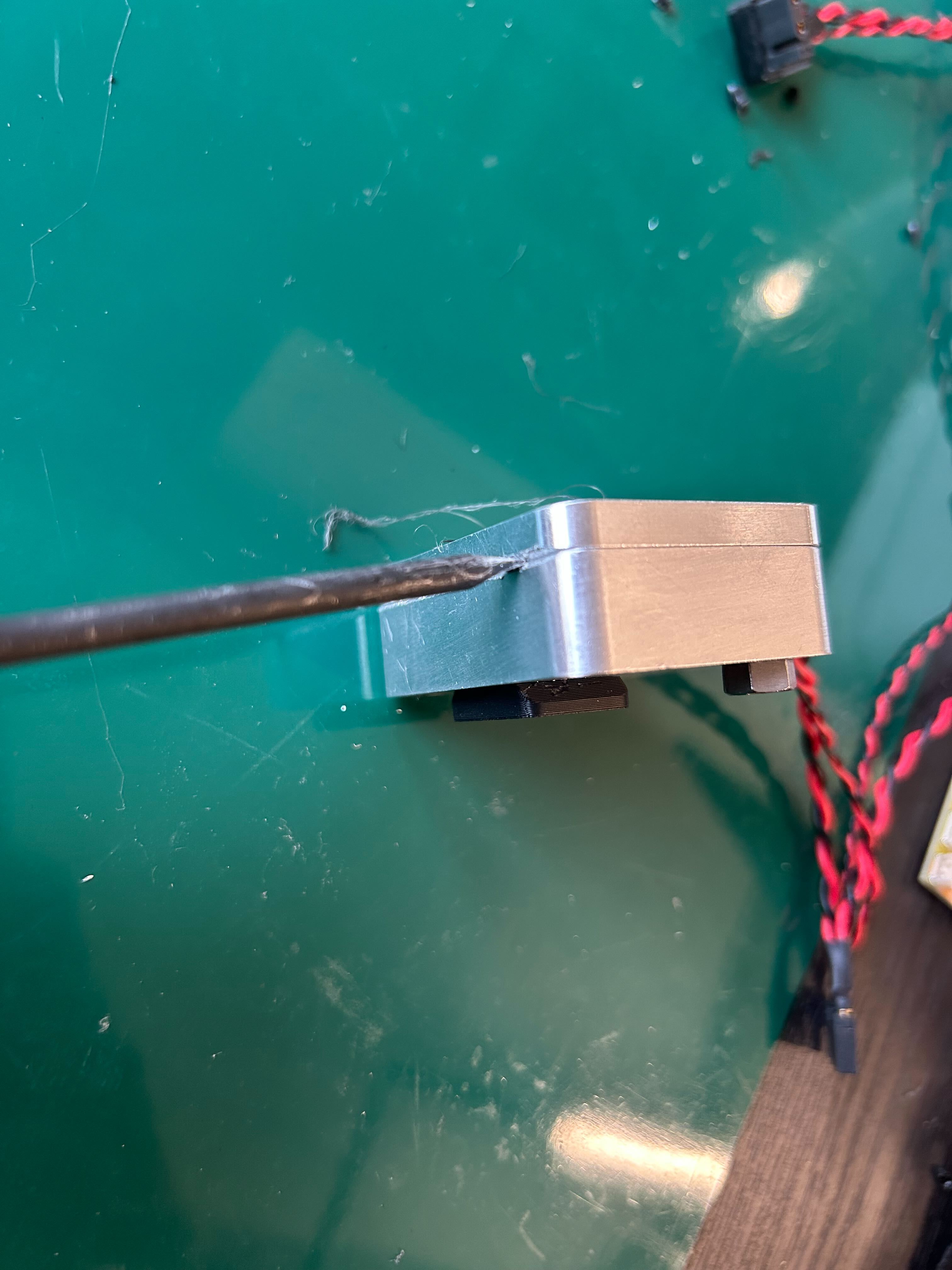

10. Insert a flathead screwdriver into the mold gap and remove the cover.

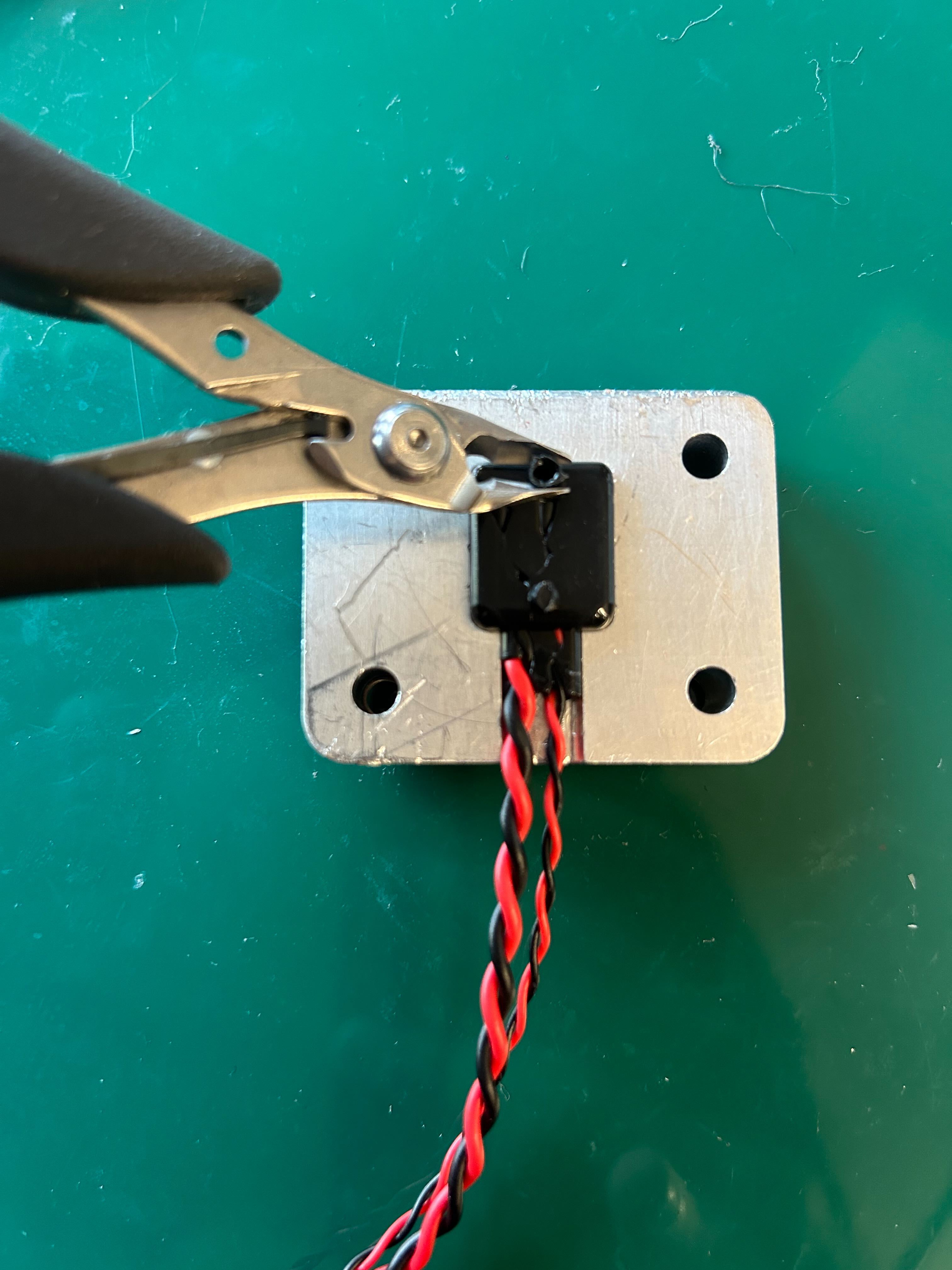

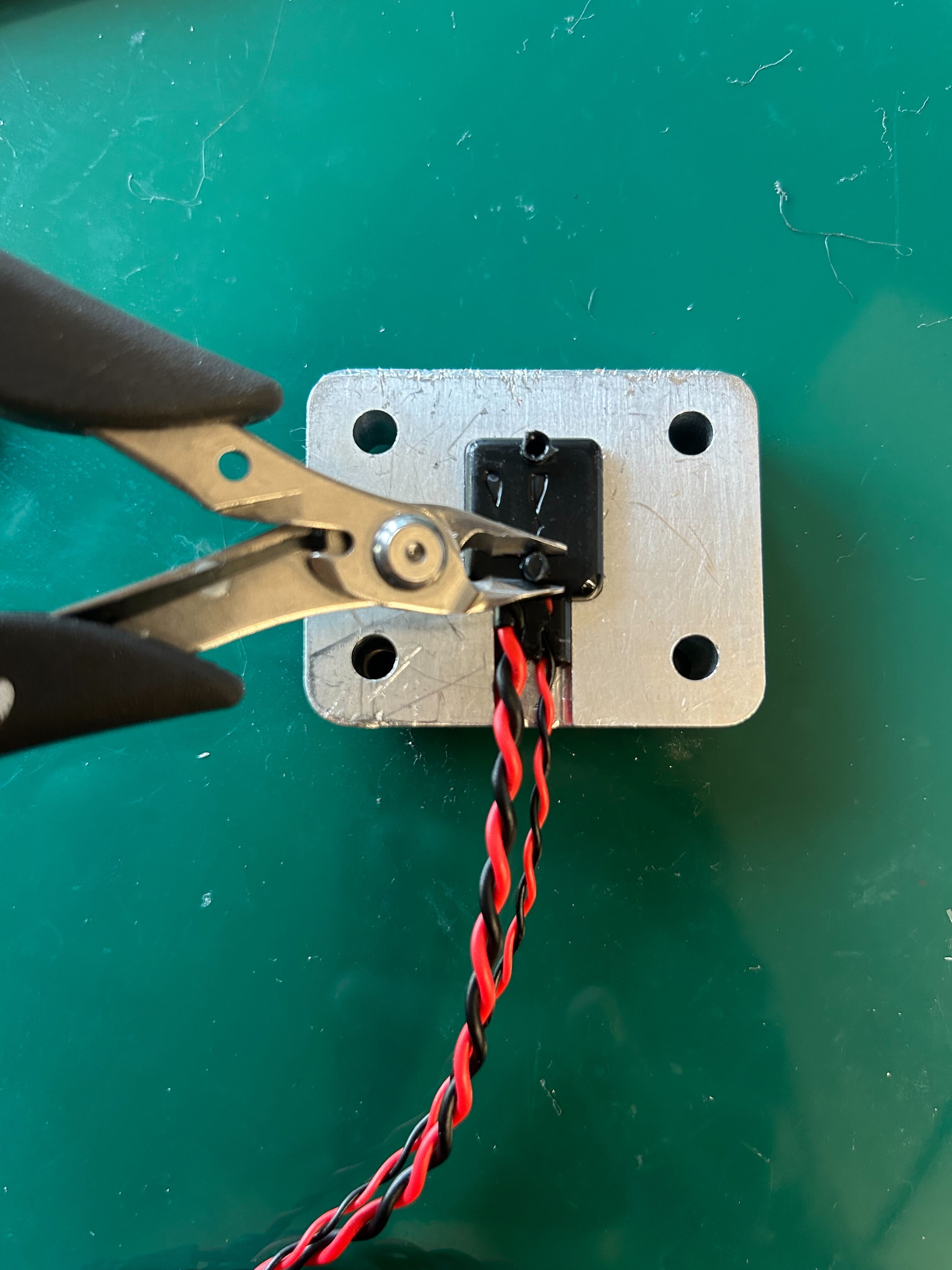

11. After removing the cover, cut off the two protruding parts of the hardened glue with nippers.

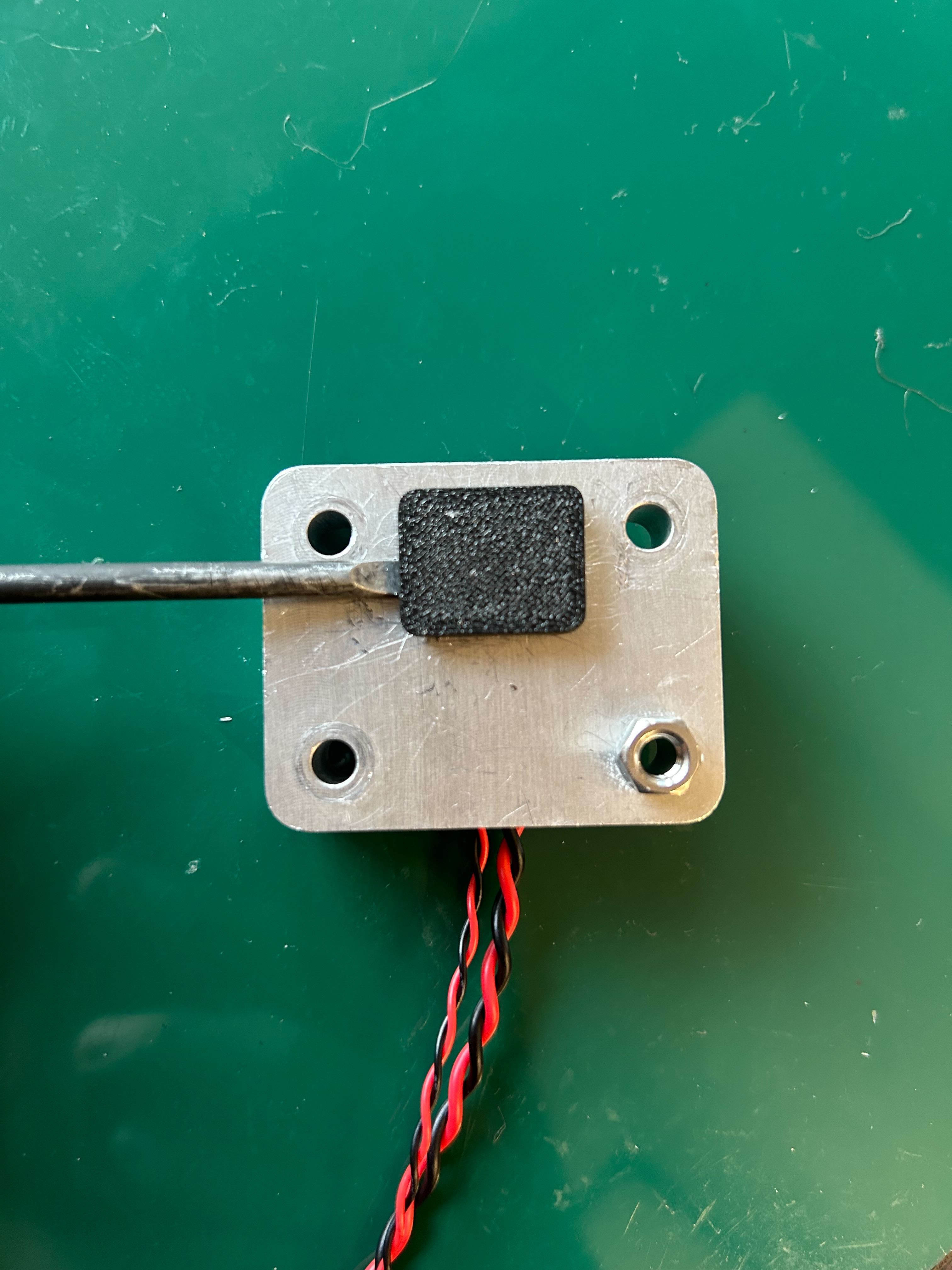

12. Use a flathead screwdriver to remove the black case on the back side.

13. From the opened black case side, push the terminal with your finger to remove it from the mold.

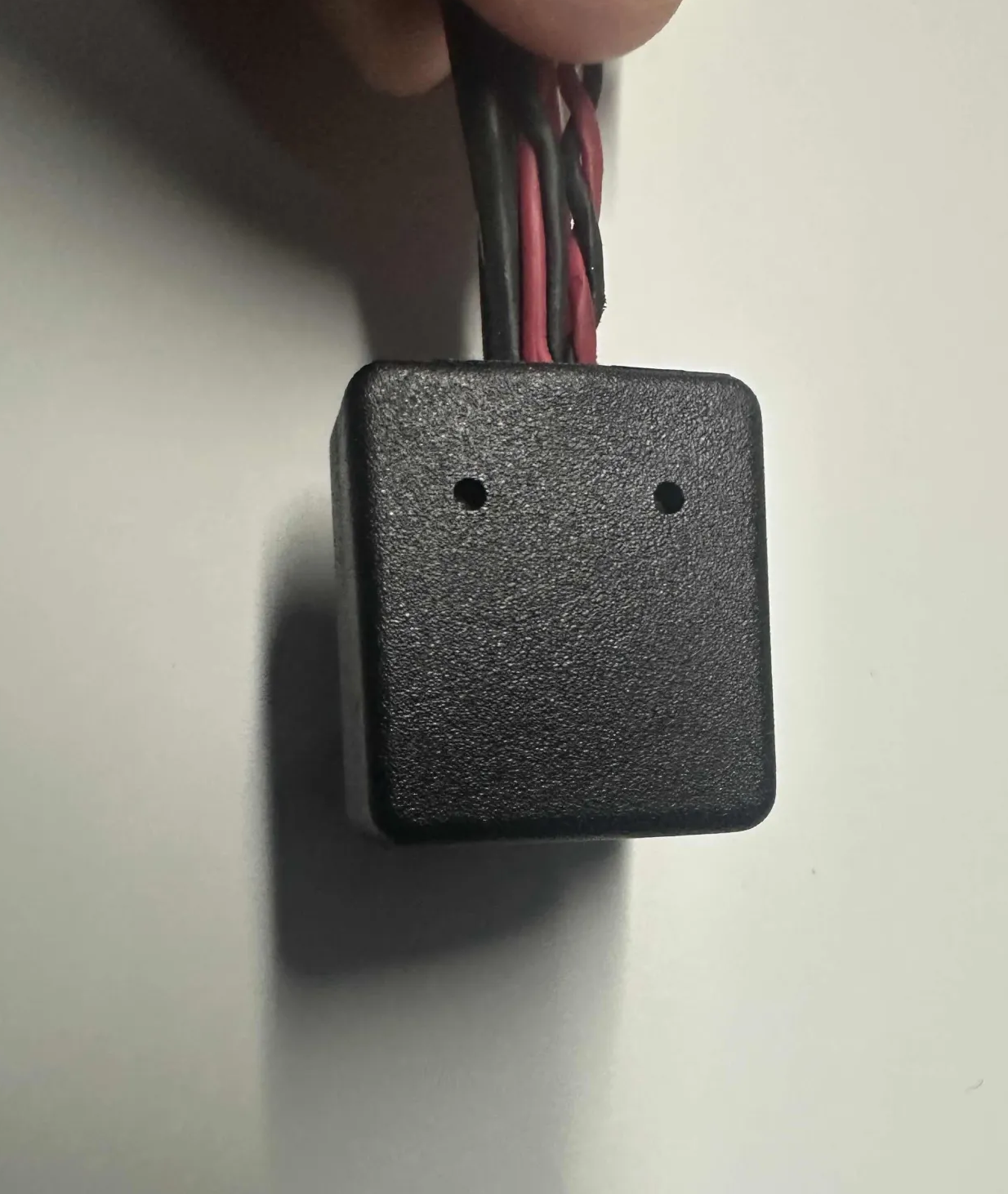

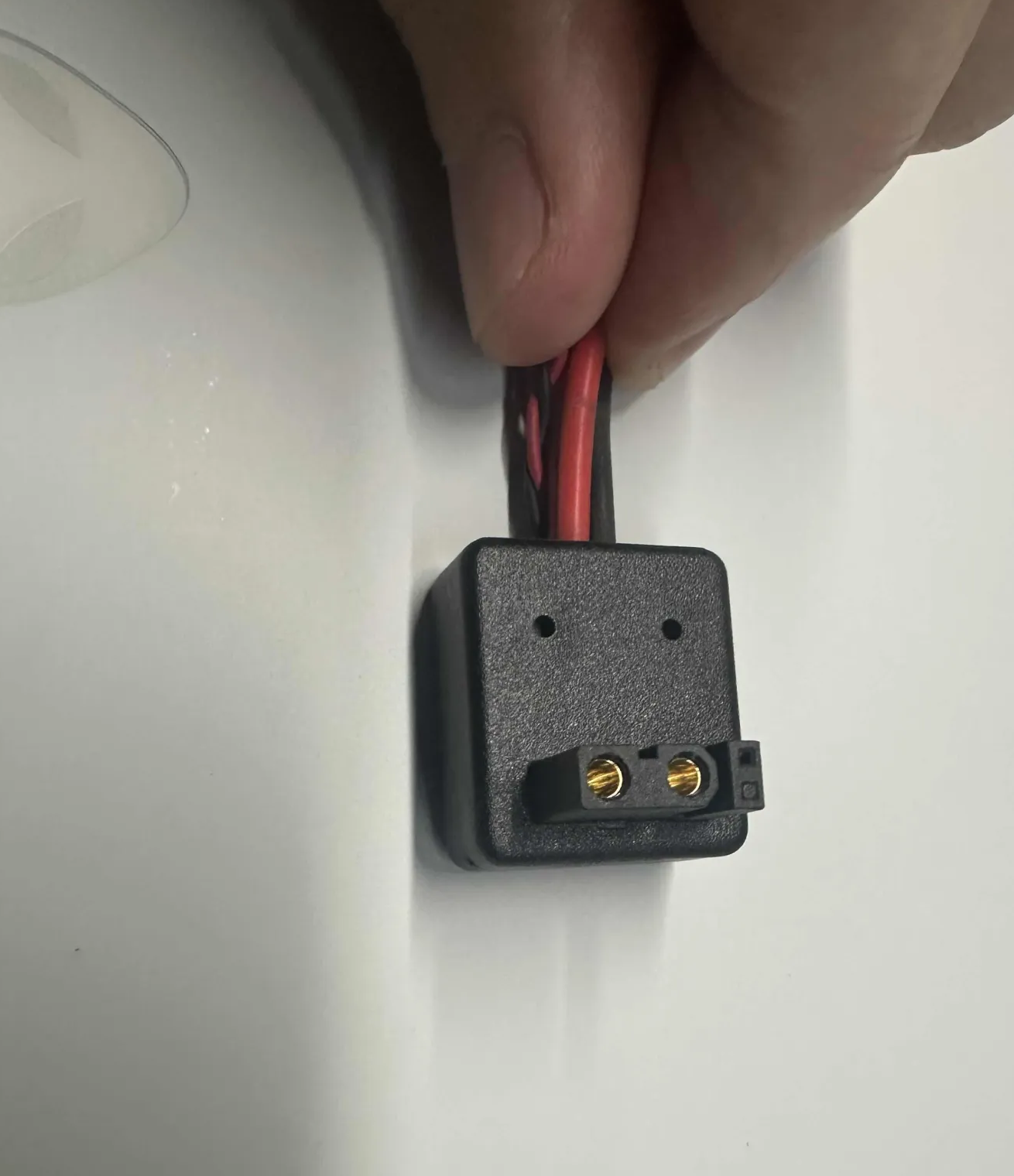

WowRobo connector

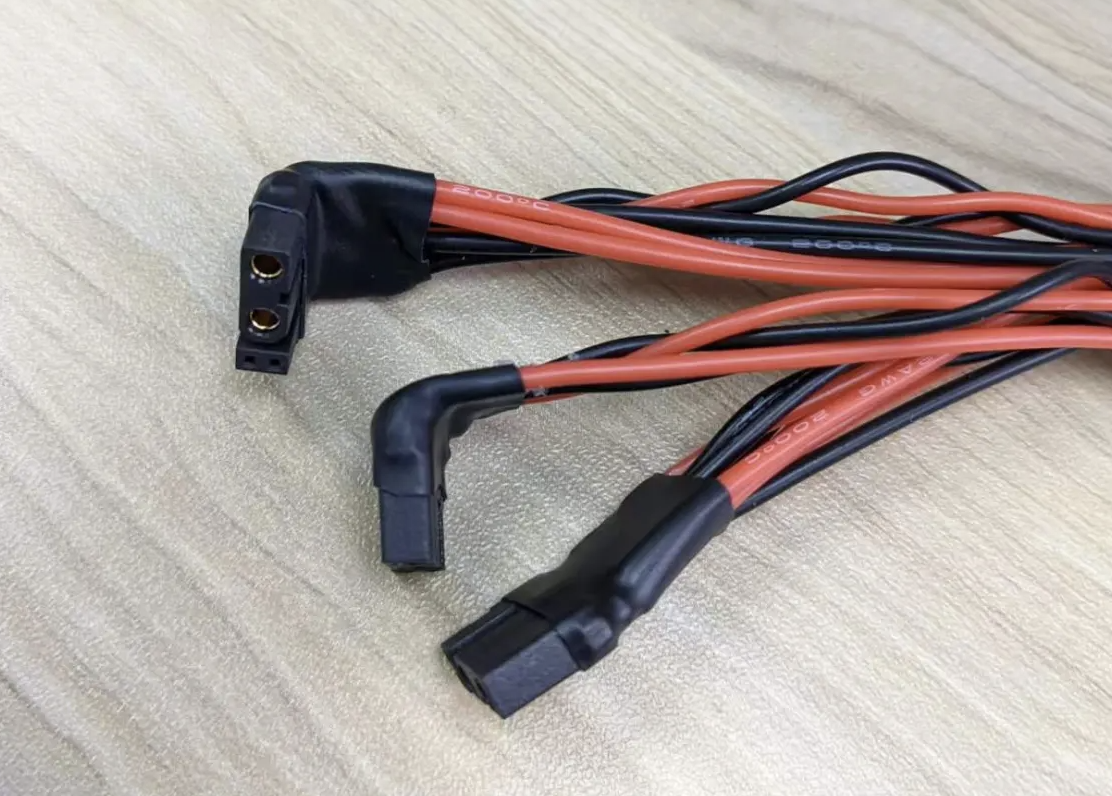

Cereboto connector

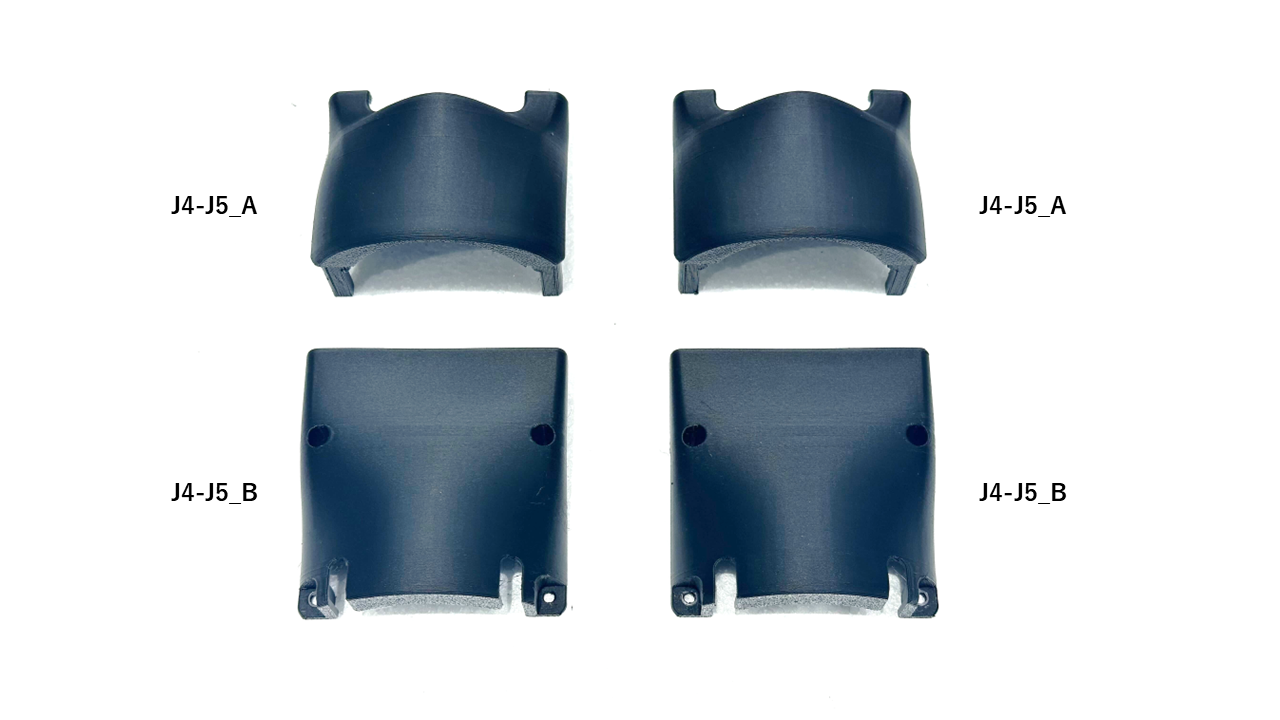

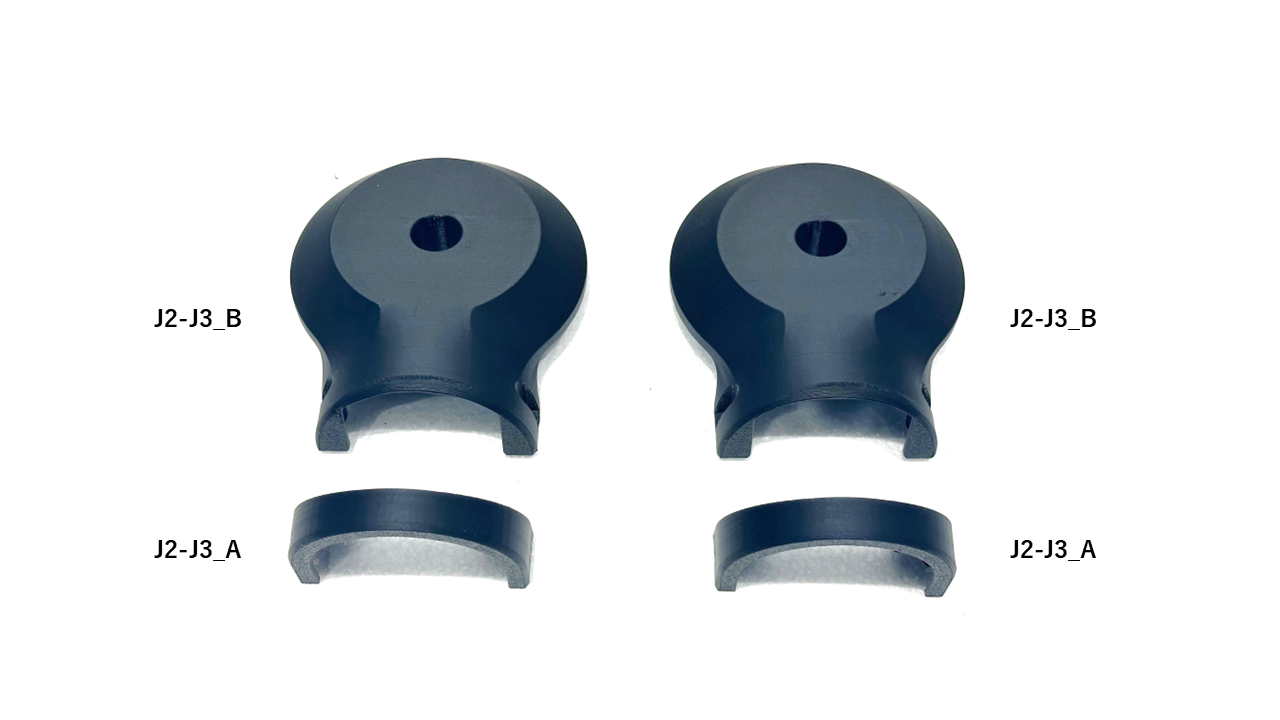

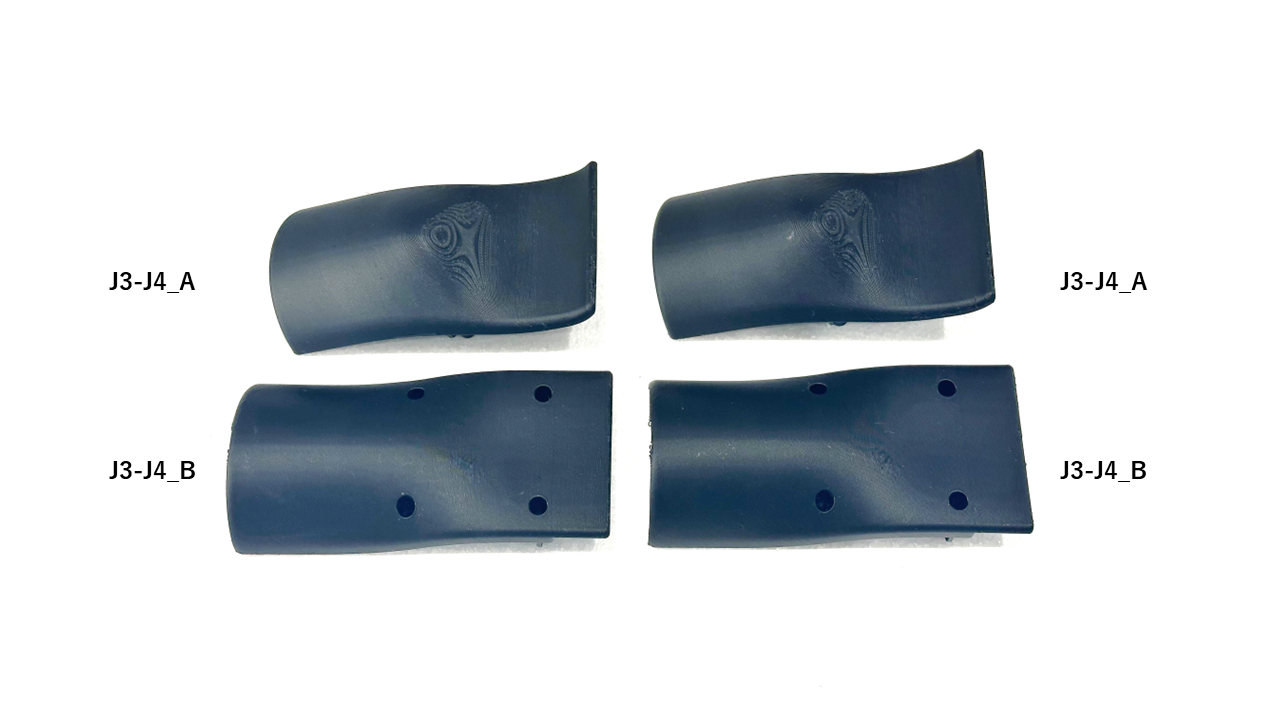

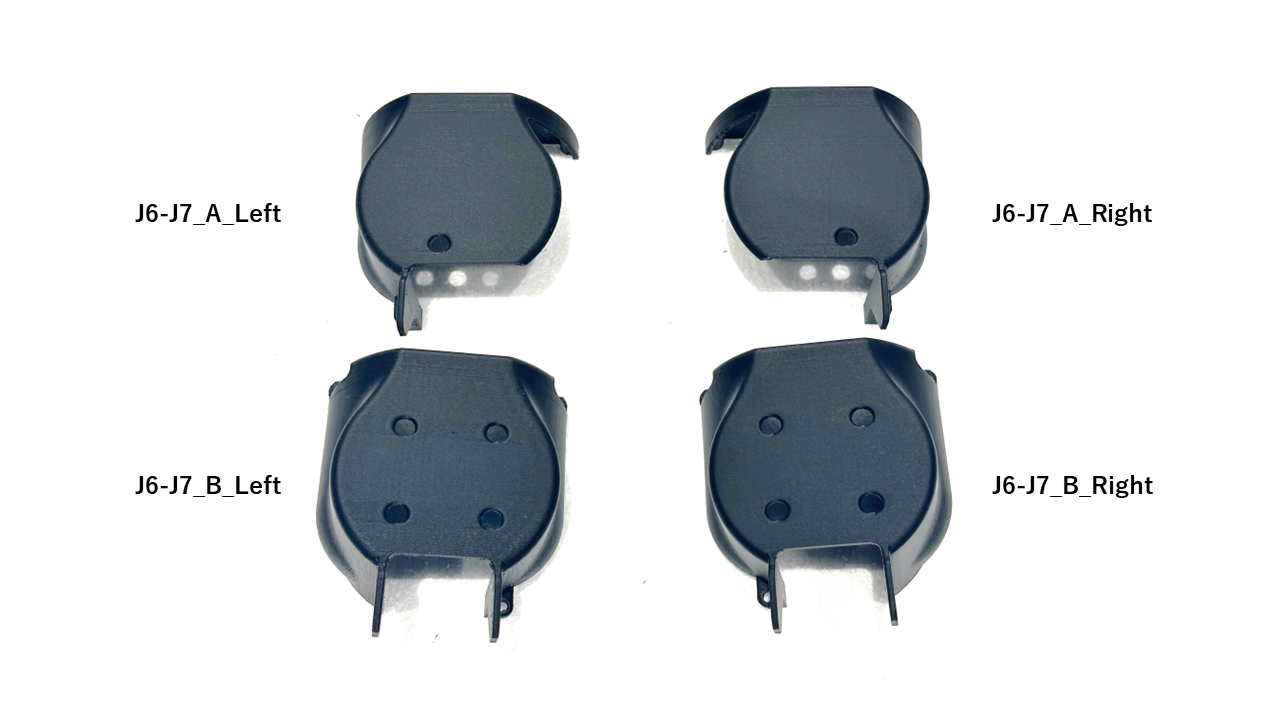

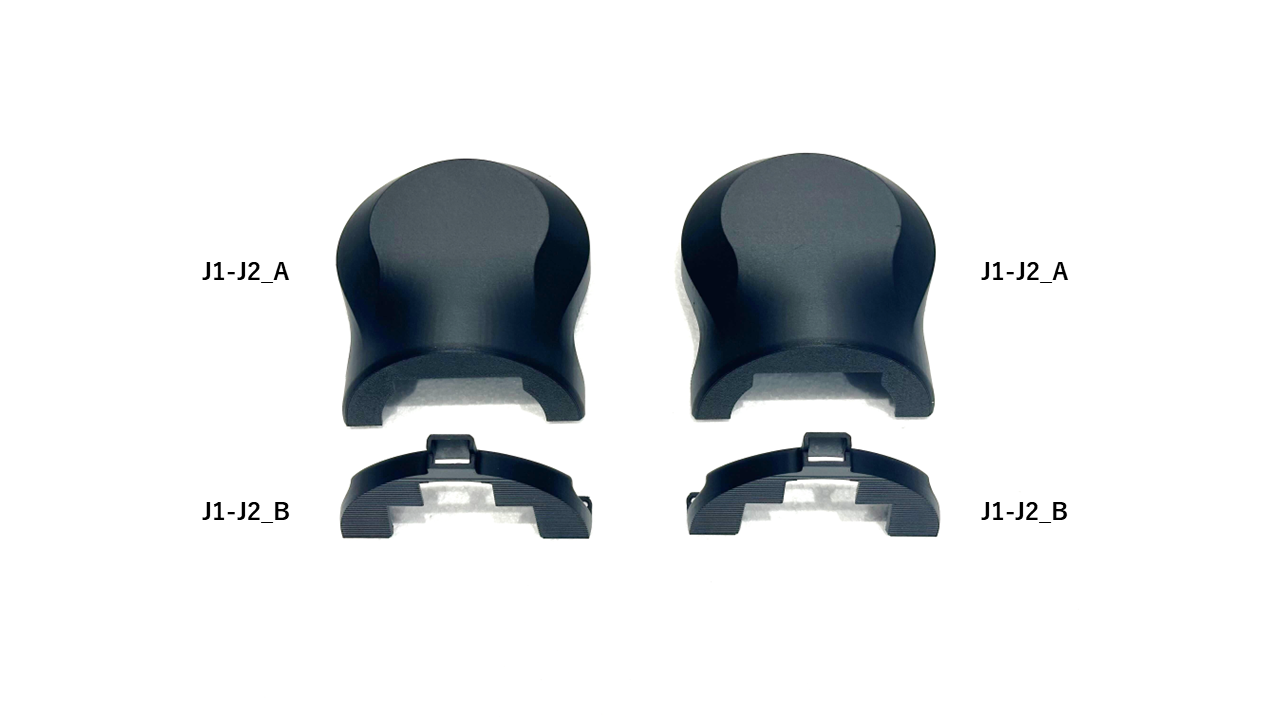

Casing

CSPPNSB-STU-TP3-8 x30

	※ these components have L & R distinctions

Hub Board

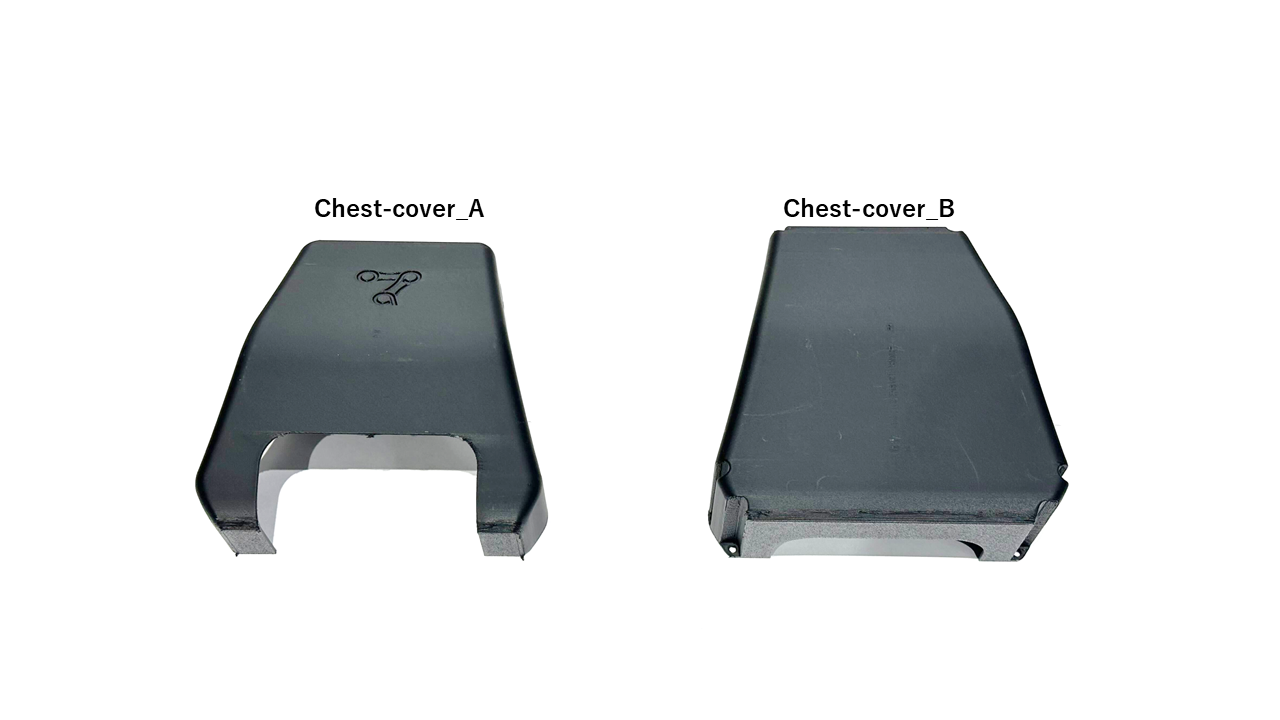

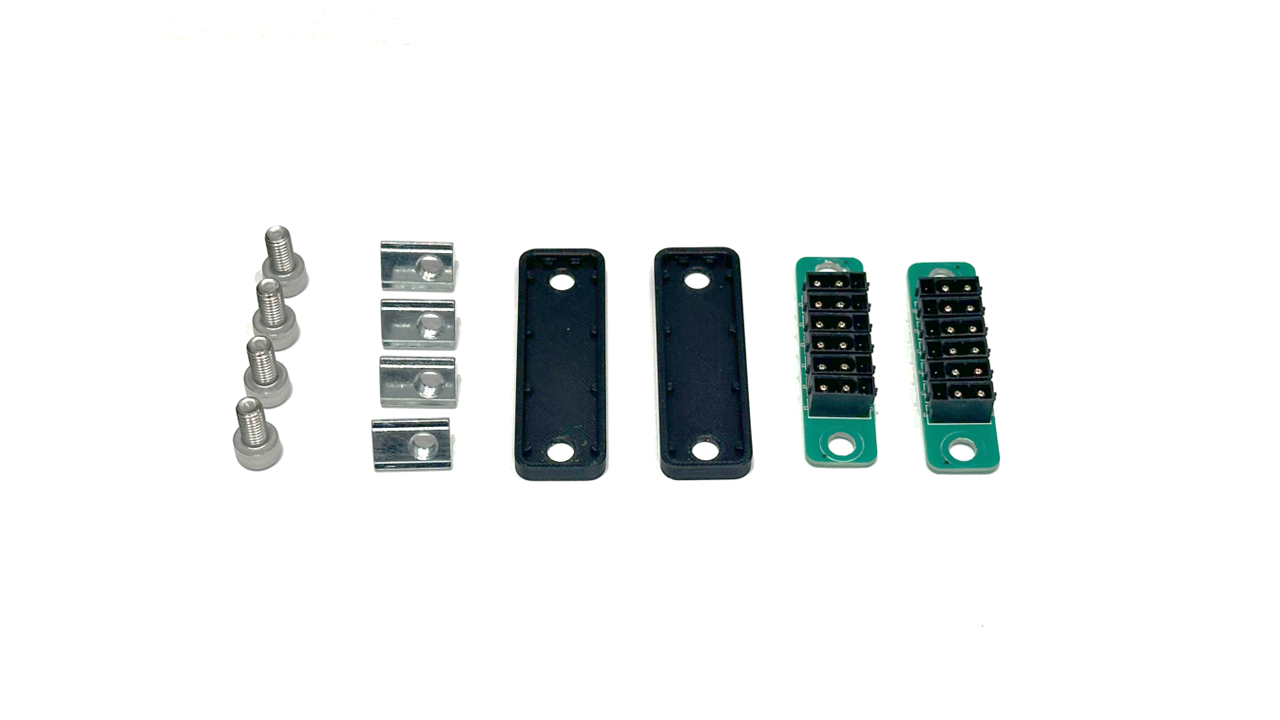

CBM6-12 cap screws x4, HNTP6-6 T-slot nuts x4, Hub board back covers x2, Hub board PCBs x2

Hub board chest covers

Cables​

Summary​

L-Shaped Connector (Enactic In-house Method)​

Processing Steps​

1. Prepare the mold and the black case, then insert the black case into the mold.​

2. Place the mold with the recessed side facing upward, and insert the terminal that will be bent into an L shape.​

3. Firmly bend the cable until it lies flat.​

4. Prepare the mold cover and place it on top.​

5. Secure the four corners with nuts and screws.​

6. Turn the mold over.​

7. Melt the hot glue stick and inject it into the outer holes.​

8. When the melted glue comes out from the middle hole as shown below, the process is complete.​

9. Wait about two minutes, then cut off the hardened glue with nippers.​

10. Insert a flathead screwdriver into the mold gap and remove the cover.​

11. After removing the cover, cut off the two protruding parts of the hardened glue with nippers.​

12. Use a flathead screwdriver to remove the black case on the back side.​

13. From the opened black case side, push the terminal with your finger to remove it from the mold.​

WowRobo connector​

Cereboto connector​

Casing​

Hub Board​
